Sound permeable and breathable membrane

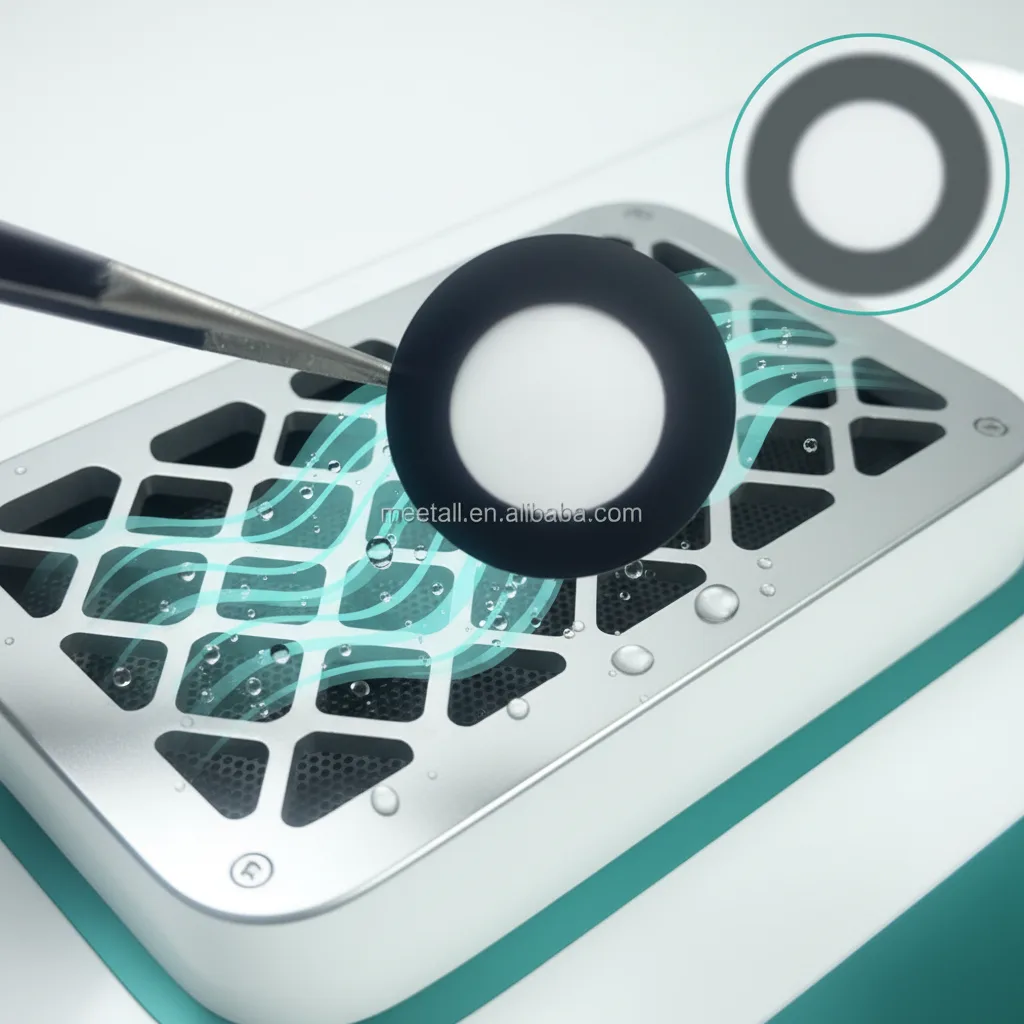

NU2300UBC Oil-Resistant Sound-Permeable Membrane for Microphones

Name: NU2300UBC Oil-Resistant Sound-Permeable Membrane for Microphones
Brand: Meetall
SKU: NU2300UBC

NU2300UBC. Thickness: 0.1T; Material Feature: Other; Sample Size: A6.

Key attributes

Parameters

Specifications

Material	e-PTFE
Thickness	0.1T
Material Feature	Other
Processing Service	Cutting, Moulding
Sample Size	A6
Place of Origin	Guangdong, China
Model Number	NU2300UBC
Brand Name	Migeer
Size	14mm*8mm
Product name	Waterproof breathable sound permeable membrane
Film color	Black white
Class of protection	5ATM
Waterproof rating	5ATM50 meters depth, continuous for 10 minutes, multiple cycles
Water pressure resistance	500kPa
Type of breathable membrane	Expanded polytetrafluoroethylene (ePTFE)
Type of adhesive backing	Acrylic adhesive
Support material	Polyester
Operating temperature range	-40°C~100°C

Minimum order quantity	50 pieces
Selling Units	Single item
Single package size	3X2X0.3 cm
Single gross weight	0.01 kg
Lead time	1 - 100 pieces: 5 days; 101 - 500 pieces: 7 days; 501 - 10,000 pieces: 15 days

Description

Waterproof rating IP67-IP68

Sound loss of 1.5dB-3.5dB

Ventilation speed 300-10000mm/S

Pressure resistance of 5-100 meters

Customizable size and thickness, customizable with different adhesives
