Double-sided Adhesive

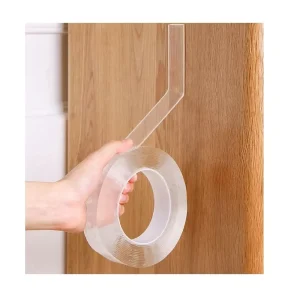

6010C is a transparent acrylic double-sided foam tape, 0.76 mm thick, with pressure-sensitive adhesive on both faces. It is waterproof, shock-absorbing, and leaves no residue, so it bonds and cushions in one layer.

It bonds metal, ceramic tile, plastic, PVC, wood, and glass. Long-term temperature resistance is 80 °C and short-term resistance is 120 °C.

Features

• Clear acrylic adhesive and backing, invisible on glass and clear plastic
• Pressure sensitive: bonds with hand pressure, no heat or curing
• Waterproof and moisture proof
• Shock-absorbing conformable foam
• No residue on removal
• PE release film on a 1.5 in core

Other double-sided tapes we convert

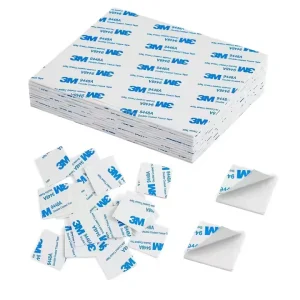

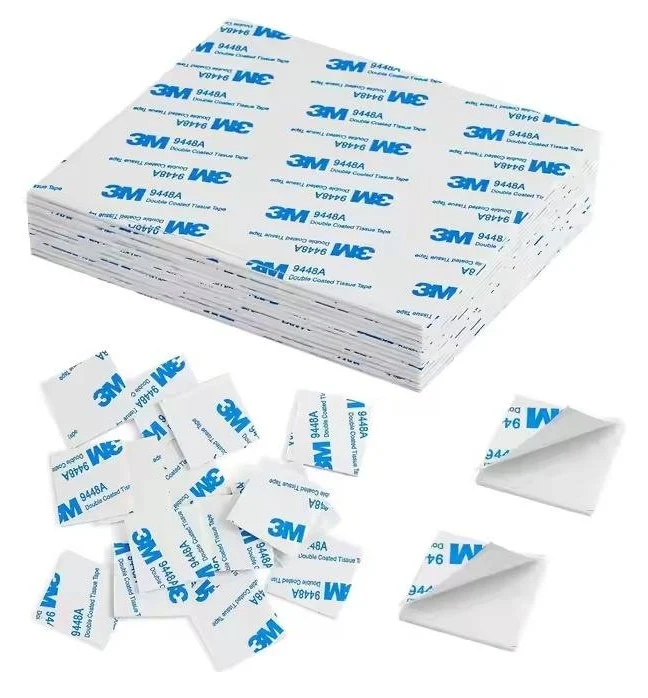

9448A is a white double-sided tape on a non-woven carrier with strong acrylic adhesive, widely die-cut for electronics assembly, nameplates, and display parts.

MGR-2477P is a double-sided medical tape, silicone on one face and acrylic on the other, 0.18 mm thick. 180° peel on steel is 2.3 N/cm on the acrylic side and 0.55 N/cm on the silicone side, with about 400 g/m²/day air permeability. It is medical grade, low sensitivity, and suitable for short-term skin adhesion, with EtO sterilization.

Applications

1. Display, panel, and nameplate bonding
2. Car display and trim mounting
3. Electronic modules, flex tails, and housings
4. Glass, metal, and plastic assembly
5. Wearable and medical devices (2477P)

Customization

1. Shape and size to your drawing, including islands and holes
2. Thickness and carrier
3. Liner type and pull tabs
4. Sheets or rolls
5. Packaging and logo

Converting at Meetall

Tapes are die-cut in a Class 10,000 cleanroom and checked on peel, tack, and holding-power testers, so a bond is backed by a number from the floor.

Packing and delivery

Rolls are boxed individually. Die-cut parts stay on the liner and ship flat in cartons.
