AB5020HF wave-absorbing material in rolls and cut sheets

Electromagnetic wave shielding material

Electromagnetic Shielding Materials

AB5020HF high-frequency wave-absorbing sheet: Fe-Si-Al magnetic powder in rubber and polymer, 10 MHz to 6 GHz, initial permeability 180, cut to shape with or without adhesive.

Key attributes

  • Model Number AB5020HF
  • Material Fe-Si-Al magnetic powder + rubber + polymer
  • Recommended frequency band 10 MHz - 6 GHz
  • Initial permeability 180
  • Product thickness 0.1 - 1.0 mm
  • Minimum order 50 pieces
  • Reference price US$0.96 / piece
Request a quote WhatsApp

Parameters

Specifications

Specification

Model Number AB5020HF
Brand Name Migeer
Place of Origin Guangdong, China
Processing Service Moulding, cutting
Material Fe-Si-Al magnetic powder + rubber + polymer
Color Gray / black / customized
Function Absorbing electromagnetic waves
Surface treatment Insulating layer / with double-sided tape

Performance

Initial permeability 180
Magnetic permeability (μ at 100 MHz) > 25
Recommended frequency band 10 MHz - 6 GHz
Surface resistance > 1 × 10⁶ Ω/cm²
Thermal conductivity 0.6 - 0.8 W/m·K
Density > 2.8 g/cm³
Product thickness 0.1 - 1.0 mm (50 μm to 1,500 μm available)
Adhesive (customer selection) 0.01 mm adhesive: > 600; 0.03 mm and above: > 1,000
Working temperature -20 to 120 °C
Storage condition 0 to 30 °C
Shelf life 12 months
Product form Sheet or roll, size to customer drawing
Compliance RoHS and halogen-free (HF)

Packaging and delivery

Minimum order quantity 50 pieces
Selling unit Multiples of 1 piece
Package size per batch 3 × 2 × 2 cm
Gross weight per batch 0.2 kg
Delivery time 7 - 10 days
Sample Available

Description

Product description

Absorbing material, also called magnetic shielding material, metal isolation material, or ferrite material, is known on the line as “magnetic cloth”. AB5020HF is a flexible, impact-resistant soft magnetic sheet made by mixing soft magnetic powder, resin, and polymer in a set proportion.

It is easy to impedance-match at high frequency, so it concentrates magnetic flux well and keeps interference from reflecting back into the circuit. That is why it is used so widely in communication products. In RFID and IoT readers and tags, NFC short-range payment, and assemblies built close to metal, the sheet isolates the antenna from the interference that metal causes.

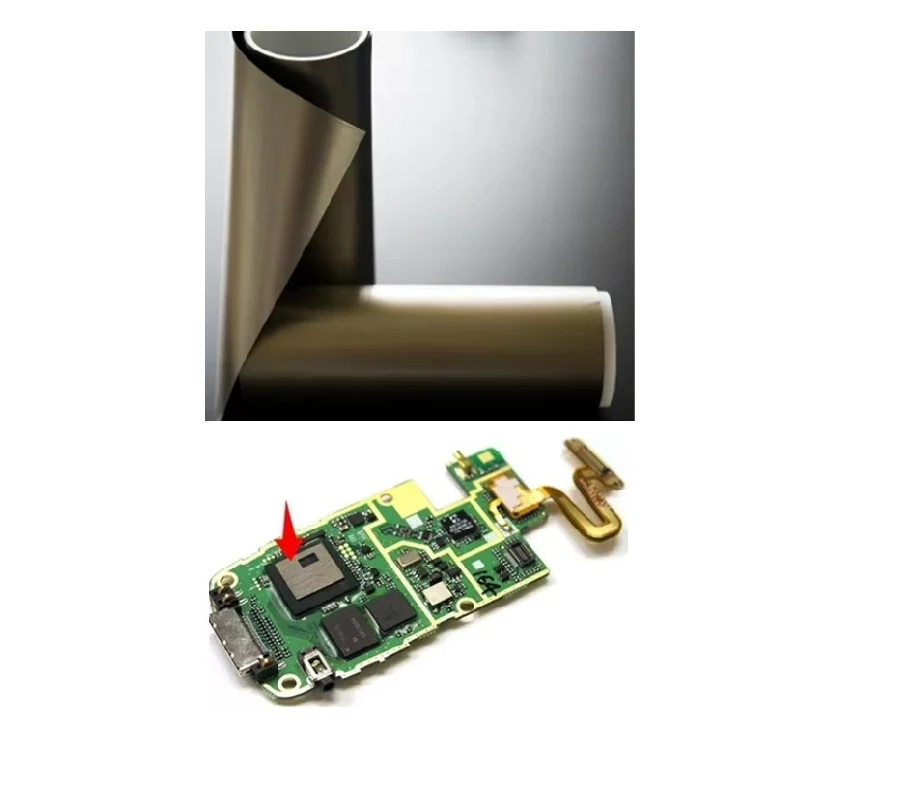

Absorbing material roll and a phone board with the sheet over a chip
Roll stock and a cut piece over a chip

Features

  • Wide electromagnetic interference range: 10 MHz to 6 GHz
  • Ultra thin, down to 50 μm
  • Flexible, resists bending, and is easy to die-cut
  • Low thermal resistance; RoHS and halogen-free compliant
  • Thicknesses from 50 μm and 100 μm up to 1,500 μm. Below 1,000 μm it can be supplied on a roll; above 1,000 μm it is supplied as sheets

Anti-interference absorbing material absorbs radiation leaking from electronic devices and removes electromagnetic interference. Beyond broadband absorption, engineering use asks for a thin sheet that is light, flexible, and easy to die-cut. AB5020HF is built for that.

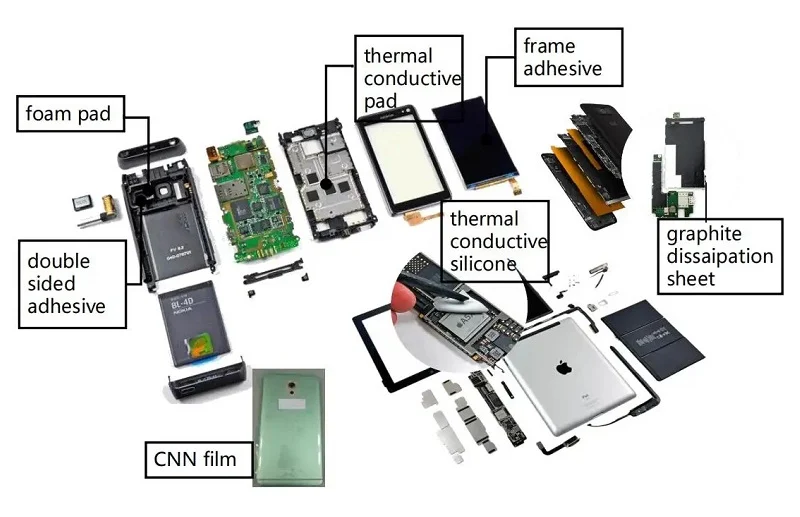

Exploded phone showing where foam, adhesive, thermal pads, and absorbing film sit
Where die-cut materials sit in a phone

Applications

  1. Smartphones and tablets
  2. Electronic payment and electronic tags
  3. GPS and other wireless communication products
  4. Precision medical equipment
  5. Integrated circuits
  6. High-precision electronic devices and printed circuit boards (PCBs)
Applications: phones and tablets, electronic payment, medical equipment, integrated circuits
Typical applications
Bus card, phone, access control and bank card uses for anti-metal absorbing sheet
NFC and RFID card uses

Customization

  1. Shape and size
  2. Magnetic grade
  3. Material and coating
  4. Magnetization direction
  5. Processing to your design drawing
  6. Packaging and logo

Packing and delivery

Each lot is packed in protective film, sealed in a bag, and boxed in a carton, so the sheets arrive flat and clean.

Packing steps: inner film, sealed bag, carton
Packing: film, sealed bag, carton

Request a quote

Quote AB5020HF

Send the model or drawing, the size, and the quantity. We reply within one business day.

  • Model or drawing A model number from this page, a PDF or DXF, or a marked photo
  • Size and thickness Sheet, roll, or die-cut shape
  • Quantity Sample lot, then the yearly volume

Prefer to talk? Ms. Li, sales

+86 158 2076 0401 +86 136 4095 3046
