The vent has to be tiny
Wearable vents are cut as a dedicated construction, with the adhesive ring sized for the small port, and checked on the 2.5D vision machine.
Smart Wearables
Wearable vents, dust mesh, adhesive islands, and soft foam for watches, bands, and sensors worn on the skin.
Application
Small footprints, sealed cases, all-day wear
A wearable has no spare millimeters. The vent must be smaller than a fingernail, the adhesive must survive sweat and a strap that bends all day, and the sensor window must stay clear. The case is sealed, yet pressure changes every time the wearer climbs stairs or boards a flight.
Our company profile names wearable vents as their own construction, separate from the module vents used in larger sealed boxes. They are cut beside dust mesh, precision adhesive islands, and soft foam in the same Class 10,000 room.
Wearable programs move fast and run in large lots once approved. A laser first article lets a tiny outline be held in the hand before steel is cut. The rotary line then carries the volume on a web.
Typical devices
- Smartwatches
- Fitness bands
- Skin-worn sensors
- Kids watches
- Class 10,000Cleanroom die-cutting
- 5 linesPrecision registration
- LaserFirst article before steel
- 30 daysStated lead time
Page updated
- Since 2015Converting in Dongguan
- 36 machinesPresses, laminators, slitters, testers
- 1,000 m²Plant floor in Dalingshan
- Onsite checkVerified on the Alibaba store
Part map
Where our parts sit in the assembly
Each card is one die-cut job: where it goes, what it has to do, and the material family it is cut from. Point at a card to find it in the stack.
- Cover lens
- Adhesive islands, display 03
- Display and board
- Soft foam pad 04
- Battery
- Case wall and port
- Wearable vent 01
- Dust mesh 02
- Button and strap mounts 05
- Adhesive islands, sensor window 03
- Sensor back cover
-

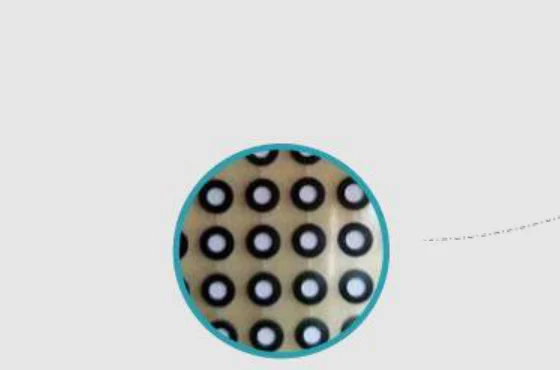

Wearable vent
Pressure port in the sealed case
Let the case breathe while liquid stays out.
Waterproof Breathable Membrane -
Dust mesh
Speaker and microphone openings
Keep the port clear of lint and dust.
HD07 IP67 Acoustic Mesh for Smart Watch Earpieces and Mic Holes -
Adhesive islands
Display, sensor window, back cover
Bond small parts with shapes that leave the window and contacts open.
Double-sided Adhesive -
Soft foam pads
Between battery and board
Cushion the stack inside a very thin case.
PU Cushioning Foam -
Rubber buffers
Button and strap mounts
Absorb small knocks and keep parts quiet.
Silicone / Rubber Buffer
Selector
Which part does which job
Read across a row to see what a part has to do, and the floor instrument that checks it before the lot ships.
| Part | Seal | Vent | Bond | Cushion | Checked with |
|---|---|---|---|---|---|
| 01Wearable vent | Yes | Yes | No | No | 2.5D vision, loupe |
| 02Dust mesh | Yes | No | No | No | 2.5D vision, loupe |
| 03Adhesive islands | Yes | No | Yes | No | Peel, tack, holding power |
| 04Soft foam pads | No | No | No | Yes | 2.5D vision |
| 05Rubber buffers | No | No | No | Yes | 2.5D vision |
What the assembly asks for
The problems buyers in this industry bring to the plant, and how the floor handles each one.
Sweat and flex test the bond
Peel, tack, and holding power are measured on Hualiang instruments, so adhesive options are compared with numbers from the floor.
Sensor windows must stay clean
Cleanroom die-cutting, with liners left on until your line, keeps the window face free of dust.
Launch volumes ramp quickly
Laser sample first, then flatbed or the ten-station rotary line for volume, in the same plant.
Parts from the plant
Photographed for the company profile. Shapes are customer-specific, so treat them as examples of the work, not stock items.
Delivery formats
Parts arrive the way your line places them
Tell us how the part goes on: by hand, in a fixture, or from a web. Each format below comes from a named machine on the floor.
Kunlun KL-QP-350 sheet cutters × 2

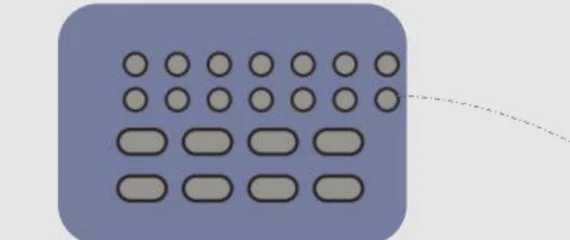

Sheets
Parts kept on a carrier sheet, counted and stacked, for hand placement or low-volume fixtures.
Kunlun KL-FTJ-1300 CNC slitter, Hadesheng rotary

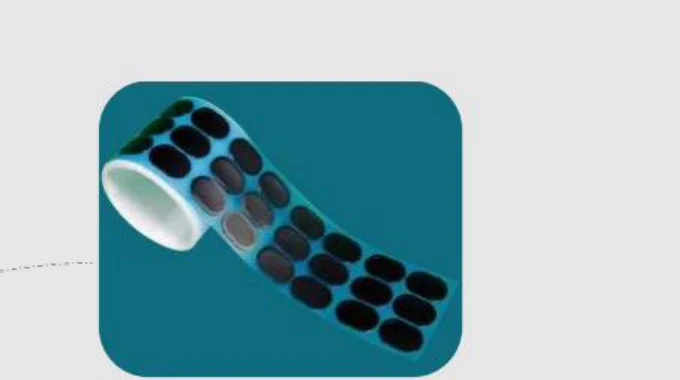

Rolls
Parts cut on a continuous web and wound to width, for long runs and feeders that pull from a roll.
Kunlun and Hongwen laminators × 16
Laminated stacks
Membrane, mesh, foam, or film combined with adhesive and liner before the cut, so one part replaces several.
Han's Laser CMA0604-B-A
Laser samples
First articles cut from the drawing without a tool, for fit trials before steel is committed.
Material families used here
Open a family for constructions, the instruments that check it, and a quote form.
Waterproof Breathable Membrane
FSM-710 ePTFE acoustic membrane: IP68, water resistance above 60 kPa, 1.5 dB transmission loss, -40 to 135 °C. Self-adhesive, cut to the port.
View details

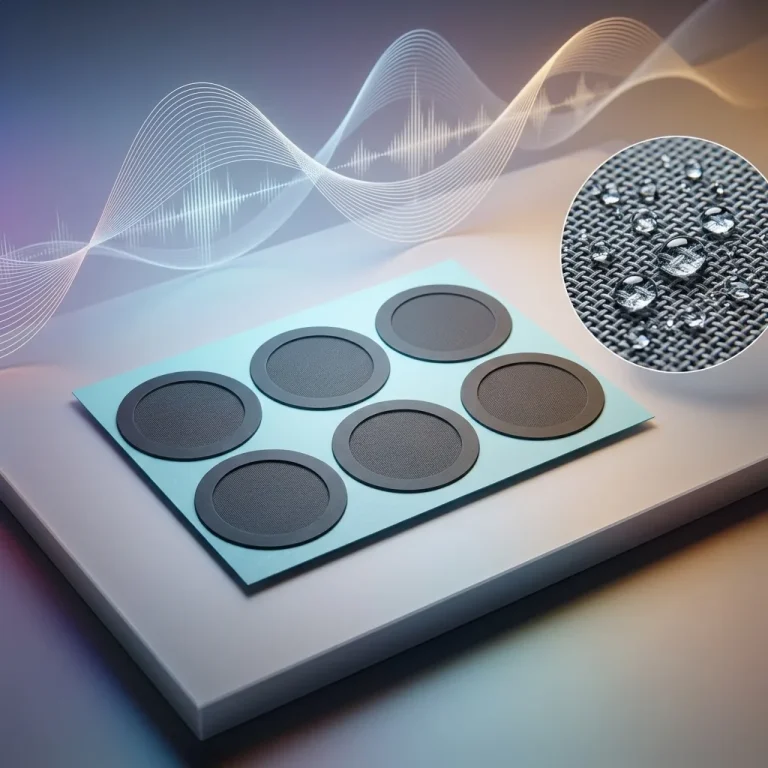

HD07 IP67 Acoustic Mesh for Smart Watch Earpieces and Mic Holes
HD07. Adhesive: acrylic acid; Thickness: 0.06mm~0.085mm; Usage: Dustproof and waterproof.
View details
Double-sided Adhesive
6010C transparent acrylic double-sided foam tape: 0.76 mm, pressure sensitive, waterproof, no residue, 80 °C long term and 120 °C short term.
View details
PU Cushioning Foam
Poron XRD polyurethane foam: 0.19 g/cm³, 18 A, high energy absorption and fast rebound, stable from -40 to 100 °C. Rolls or die-cut shapes.
View details
Silicone / Rubber Buffer
MGR-6022BC-E EPDM rubber foam: waterproof, anti-slip, high rebound, with single- or double-sided adhesive, die-cut to your drawing.
View detailsFrom drawing to production lot
The same four steps for every industry on this site. One sales contact from the first sample to repeat orders.
-
Drawing review
Send a PDF, DXF, a marked photo, or the current part. We read the stack-up and name the material.
-
Laser first article
A Han's Laser sampler cuts the first pieces, so fit is judged in your assembly before a tool is made.
-
Tooling and lot
Flatbed presses for shaped parts, the ten-station rotary line for long webs, all in the Class 10,000 room.
-
Inspection and ship
2.5D vision, web inspection, and peel, tack, and holding-power tests before the lot leaves EXW.
Questions buyers ask
If yours is not here, put it in the quote form. We reply within one business day.
What is the difference between a wearable vent and a module vent?
Our profile lists them as separate constructions. A wearable vent is cut for the small port of a watch, band, or skin sensor. A module vent is cut for a larger sealed box such as a controller or sensor housing.
Can vents be supplied on a web for automatic placement?
Tell us your placement method. Parts can be cut on a web on the rotary line, and we confirm the liner and spacing with you before production.
Do you test the adhesive?
Peel, tack, and tape holding-power testers sit beside the lines. Tell us the substrates and we run the relevant checks on samples.
What are the lead time and trade terms?
The stated lead time is 30 days. Trade is EXW. Payment is T/T, PayPal, or cash, in USD, EUR, HKD, or CNY.
Patents and registrations
Our certificates
Granted in China and held by the company: utility model patents from the national patent office, and software copyright registrations from the National Copyright Administration.
- 3Utility model patents
- 2Software copyright registrations
Ask for certificate copies with your quote.
Request a quote
Quote a part for Smart Wearables
Four things make the first reply useful.
- Drawing PDF, DXF, or a marked photo of the current part
- Position Where the part sits and what it touches
- Quantity Sample lot, then the yearly volume
- Format Sheets, rolls, or laminated stacks, and how your line places them
