Sound permeable and breathable membrane

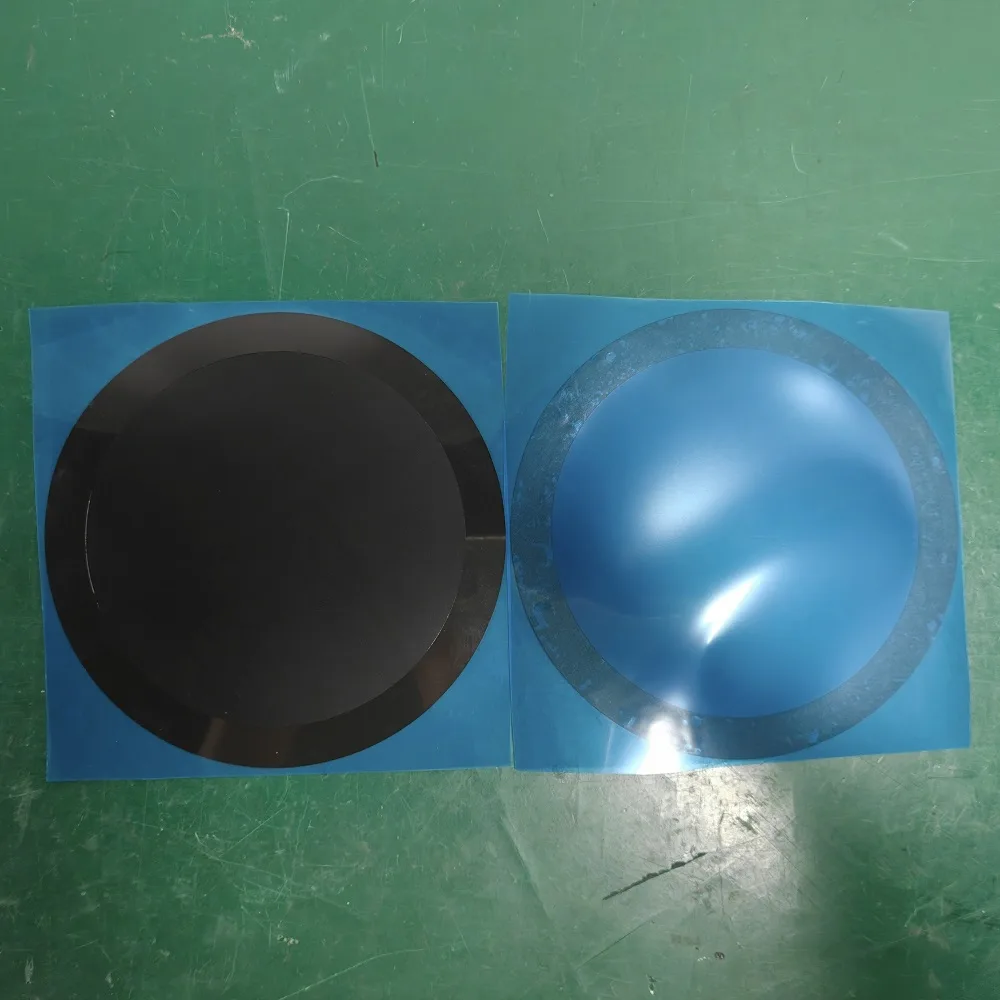

FSM-200B Black EPTFE Acoustic Membrane for Meeting Microphones
FSM-200B. Dimension (L*W*H): 166mm*136mm; Total Thickness: 0.02mm+Custom Thickness Available; Air Flow: 1000.
Key attributes
- Model Number FSM-200B
- Color Black
- Dimension (L*W*H) 166mm*136mm
- Product name Waterproof Acoustic Membrane
- Total Thickness 0.02mm+Custom Thickness Available
- Minimum order 20 pieces
- Reference price US$0.77 - 1.87 / piece
Parameters
Specifications
Specification
| Rubber Product Type | Rubber Stopper |
|---|---|
| Color | Black |
| Model Number | FSM-200B |
| Processing Service | Moulding, Cutting |
| Place of Origin | Guangdong, China |
| Dimension (L*W*H) | 166mm*136mm |
| Brand Name | Migeer |
| Product name | Waterproof Acoustic Membrane |
| Total Thickness | 0.02mm+Custom Thickness Available |
| Air Flow | 1000 |
| Water Resistance Pressure | >60KPA |
| Protection Level | IP67 (Dust-tight & Water Immersion Resistant) |
| Moisture Permeability | >5000g/m2.24H |
| Transmission Loss | 3dB |
| Service Temperature | -40 °C-135 °C |

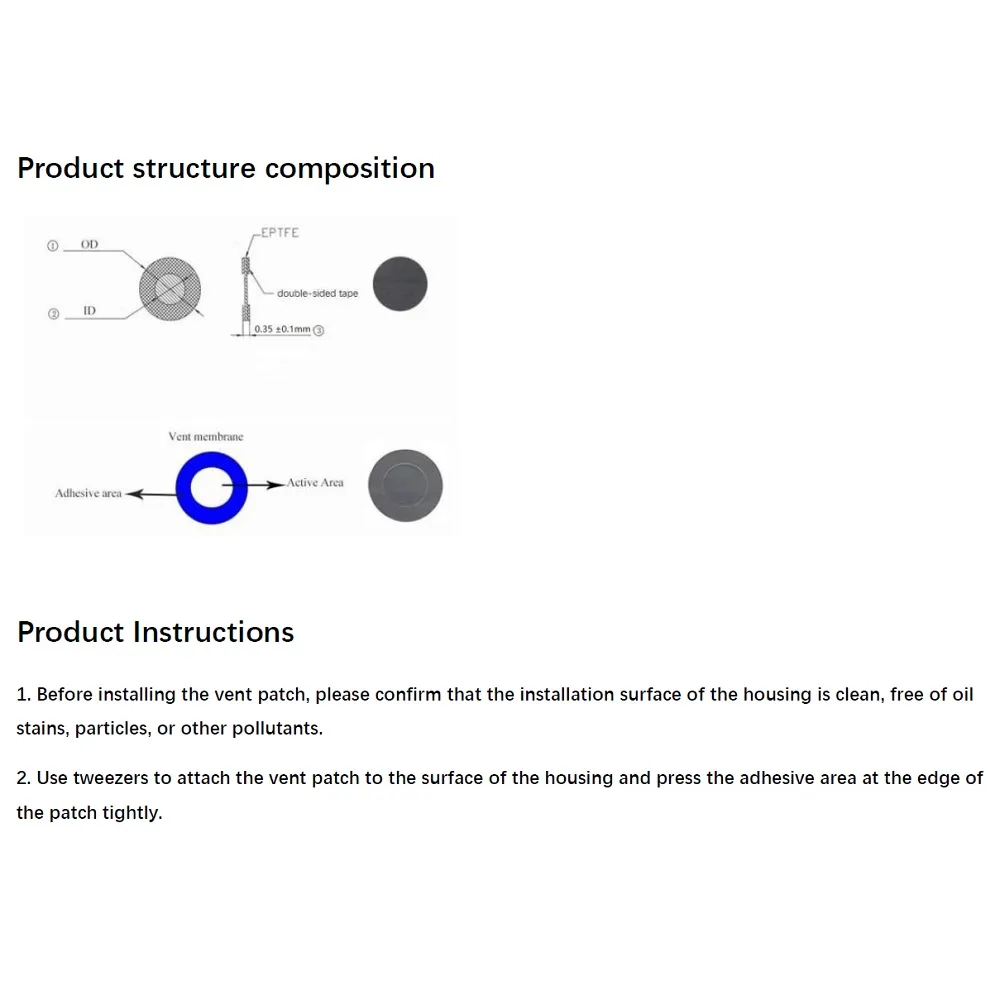

| Material | ePTFE Membrane + Adhesive + Release Liner |
Packaging and delivery
| Minimum order quantity | 20 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 0.77X0.77X0.18 cm |
| Single gross weight | 0.05 kg |
| Lead time | 1 - 500 pieces: 7 days; 501 - 2,000 pieces: 11 days; 2,001 - 10,000 pieces: 15 days |
Description
Product description
FSM-200B Black EPTFE Acoustic Membrane for Meeting Microphones. Color Black, Dimension (L*W*H) 166mm*136mm, Total Thickness 0.02mm+Custom Thickness Available, Air Flow 1000. Minimum order 20 pieces.
