Sound permeable and breathable membrane
FSM-750 IP68 EPTFE Vent Sticker for Motor Housings
FSM-750. Thickness: 0.3mm; Material Feature: EPTFE; Sample Size: 8mm*6mm.
Key attributes
- Model Number FSM-750
- Material eptfe
- Thickness 0.3mm
- Material Feature EPTFE
- Sample Size 8mm*6mm
- Minimum order 10 pieces
- Reference price US$0.09 - 0.67 / piece
Parameters
Specifications
Specification
| Material | eptfe |
|---|---|
| Thickness | 0.3mm |
| Material Feature | EPTFE |
| Processing Service | Moulding Cutting |
| Sample Size | 8mm*6mm |
| Place of Origin | Guangdong, China |
| Model Number | FSM-750 |
| Brand Name | MEETALL |
| Size | Customization supported |
| IP rate | IP-67~IP68 |
| Transmission Loss | 1.5db-3db |
| Service Temperature | Minus 40 degrees to 135 degrees |
| Air Flow | 300~10000 |
| Color | white&black |
| Total Thickness | 0.01mm+Custom Thickness Available |
| Water Resistance Pressure | >60KPA |
| shape and size | customizable |
Packaging and delivery
| Minimum order quantity | 10 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 0.85X0.85X0.1 cm |
| Single gross weight | 0.05 kg |
| Lead time | 1 - 500 pieces: 7 days; 501 - 5,000 pieces: 10 days; 5,001 - 25,000 pieces: 31 days |
Description
Product description

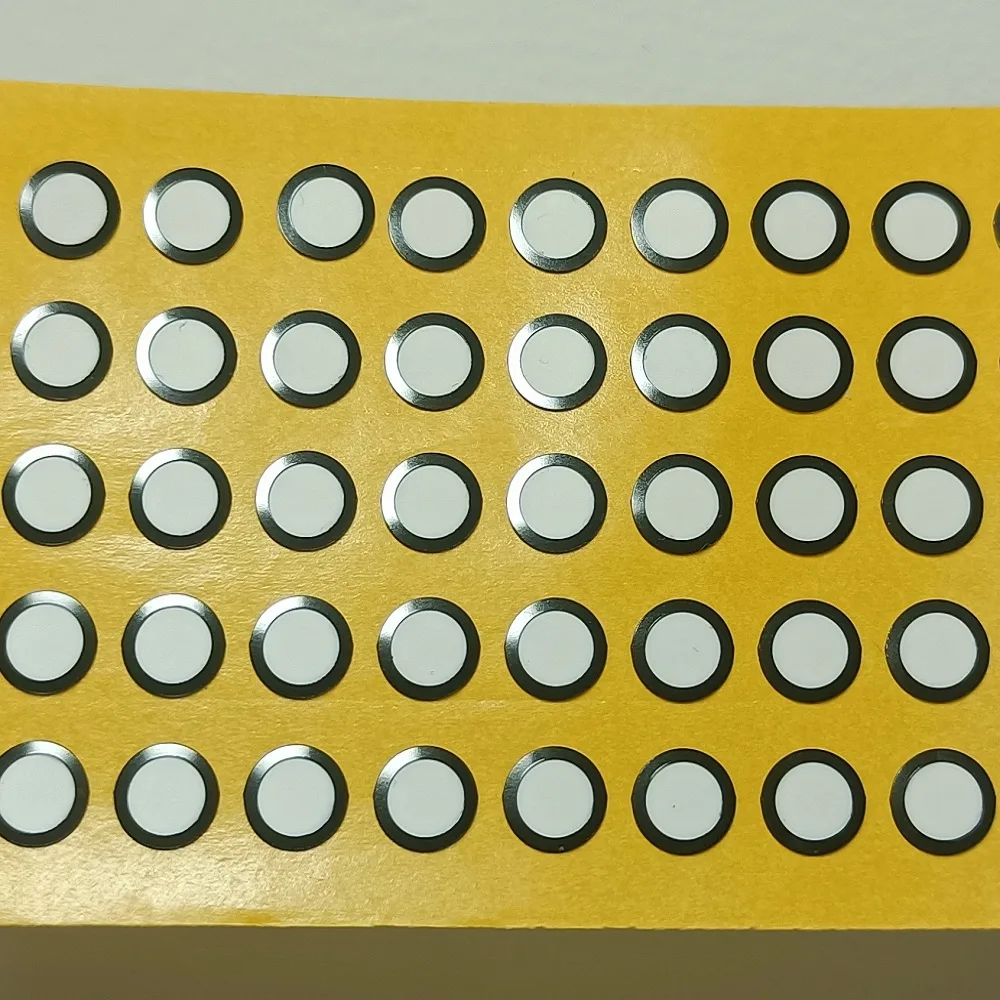

Annular composite design. The inner 6mm diameter is effective EPTFE waterproof sound-permeable area; outer black carrier frame integrates high-temperature double-sided adhesive with green release liner. Supporting frame avoids membrane stretching & distortion during installation for better stability than single raw film.
Pre-coated adhesive with release liner fits automatic placement & die-cutting without secondary gluing to cut production cost; custom dimension available on request.

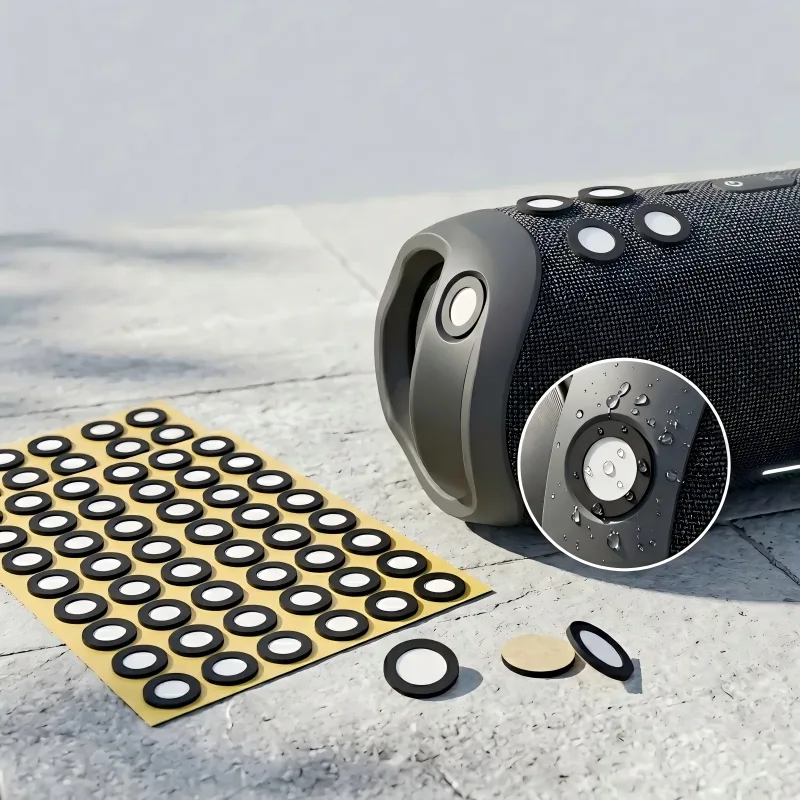

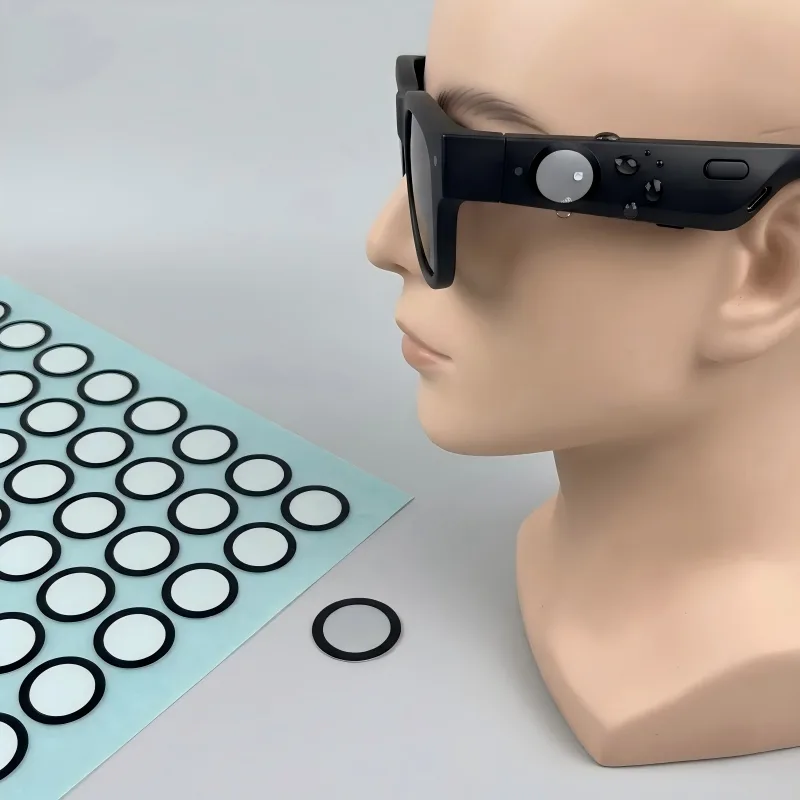

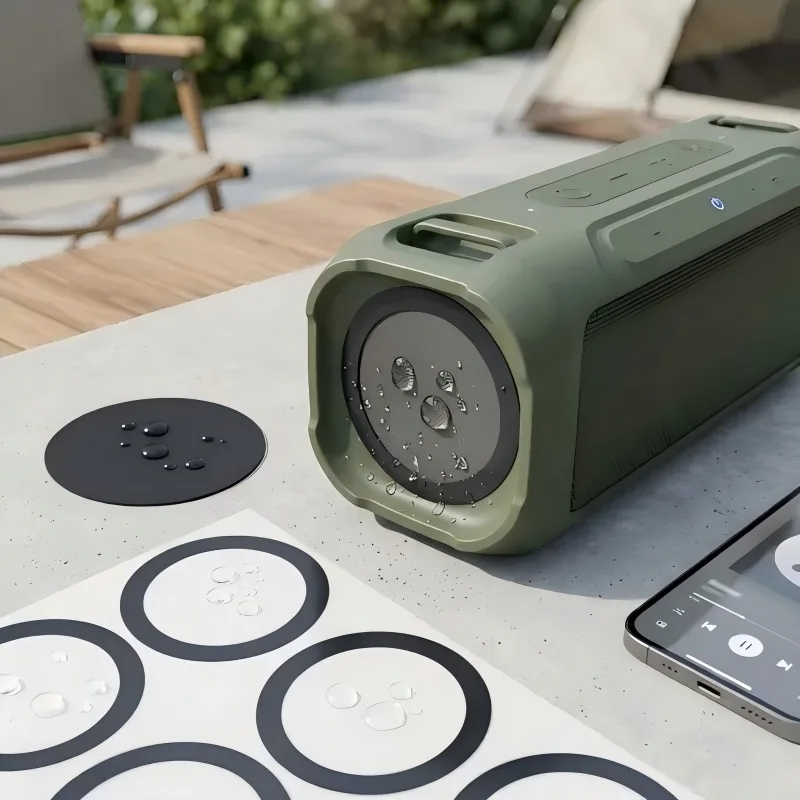

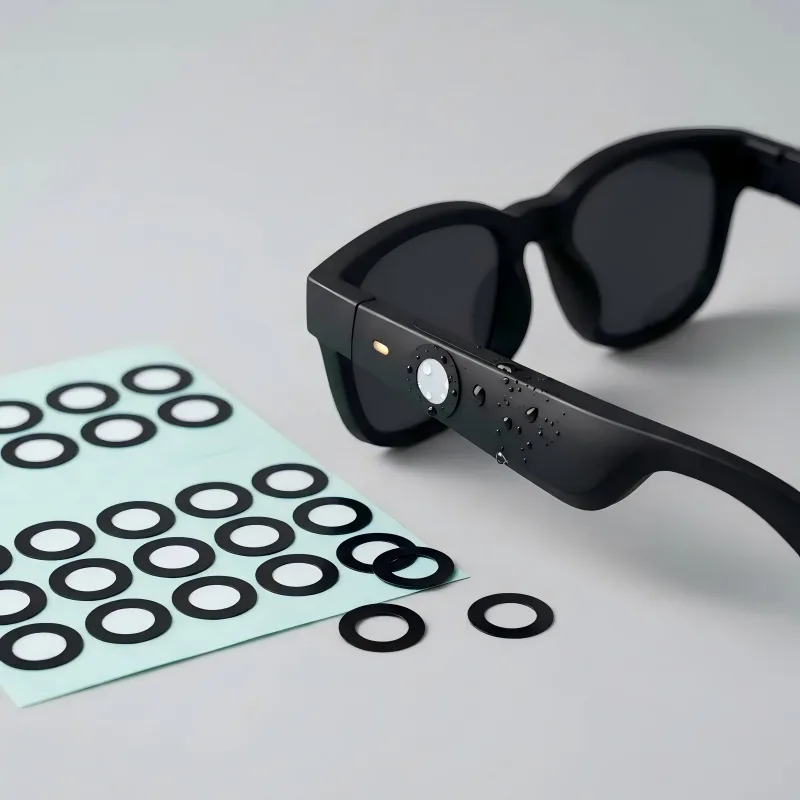

Applied on TWS earbuds, smart watches, mini cameras, auto sensors, small home appliances & outdoor lamps, for speaker hole waterproofing as well as enclosure venting and internal pressure balance
