Sound permeable and breathable membrane

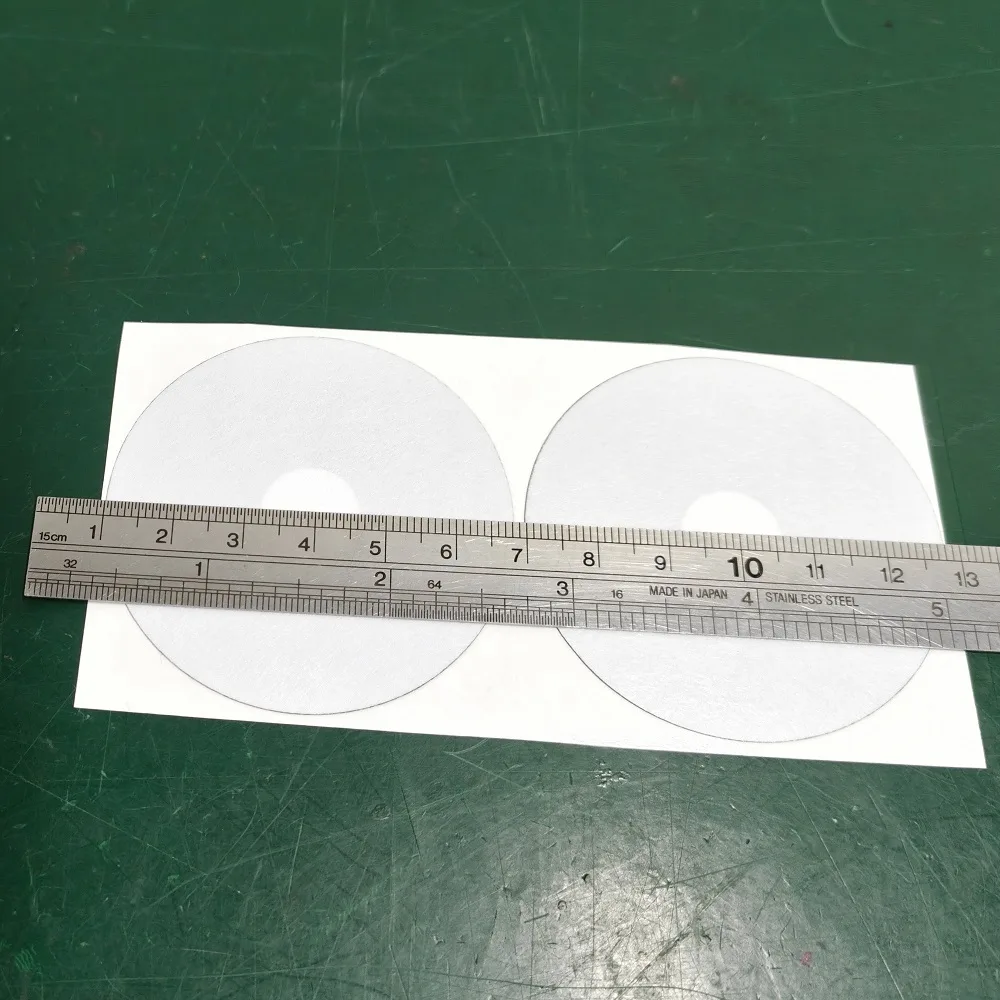

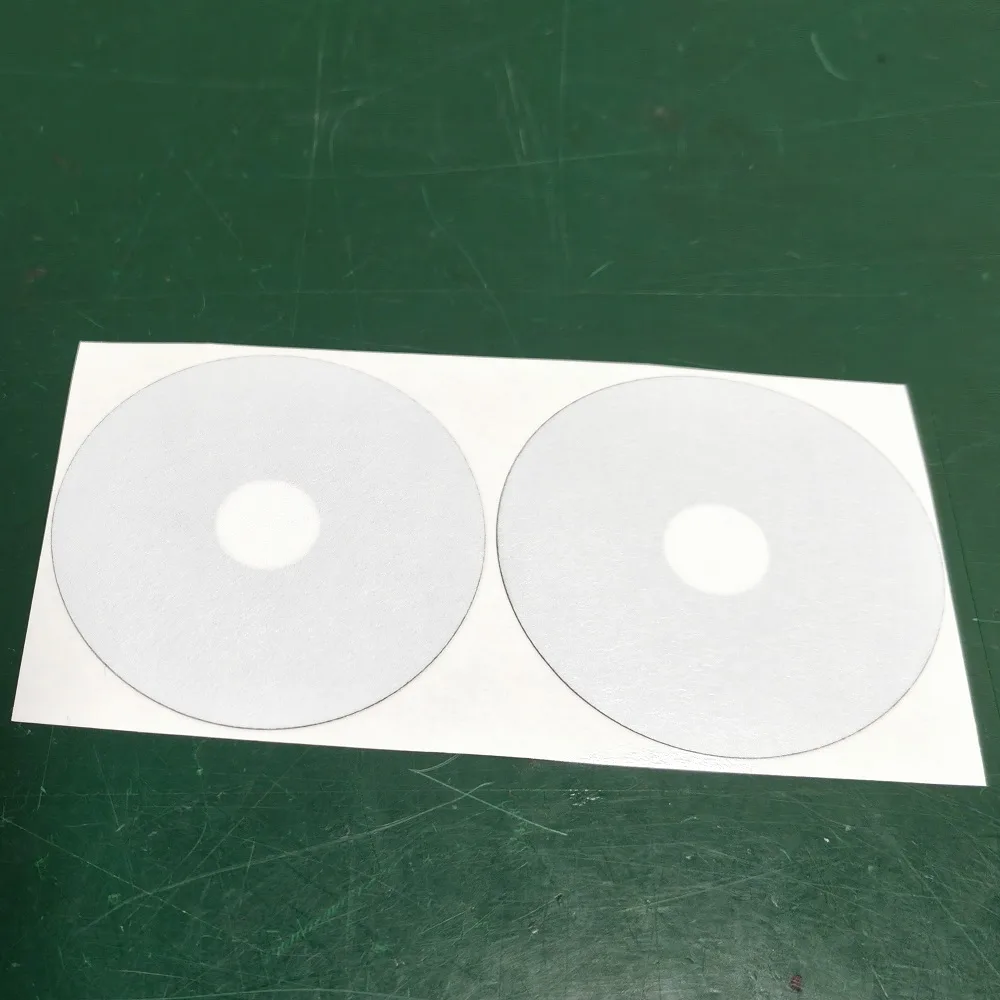

FSM-7218W IP68 EPTFE Membrane Roll, Die-Cut Vent for Industrial Sensors
FSM-7218. Thickness: 0.3mm; Material Feature: EPTFE; Sample Size: 8mm*6mm.
Key attributes
- Model Number FSM-7218
- Material eptfe
- Thickness 0.3mm
- Material Feature EPTFE
- Sample Size 8mm*6mm
- Minimum order 10 pieces
- Reference price US$0.27 - 0.92 / piece
Parameters
Specifications
Specification
| Material | eptfe |
|---|---|
| Thickness | 0.3mm |
| Material Feature | EPTFE |
| Processing Service | Moulding Cutting |
| Sample Size | 8mm*6mm |
| Place of Origin | Guangdong, China |
| Model Number | FSM-7218 |
| Brand Name | MEETALL |
| Size | Customization supported |
| IP rate | IP-67~IP68 |
| Transmission Loss | 1.5db-3db |
| Service Temperature | Minus 40 degrees to 135 degrees |
| Air Flow | 300~10000 |
| Color | white&black |
| Total Thickness | 0.01mm+Custom Thickness Available |
| Water Resistance Pressure | >100KPA |
| shape and size | customizable |
Packaging and delivery
| Minimum order quantity | 10 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 0.67X0.65X0.04 cm |
| Single gross weight | 0.03 kg |
| Lead time | 1 - 500 pieces: 7 days; 501 - 5,000 pieces: 10 days; 5,001 - 25,000 pieces: 31 days |
Description
Product description
FSM-7218W IP68 EPTFE Membrane Roll, Die-Cut Vent for Industrial Sensors. Material eptfe, Thickness 0.3mm, Material Feature EPTFE, Sample Size 8mm*6mm. Minimum order 10 pieces.
