Sound permeable and breathable membrane

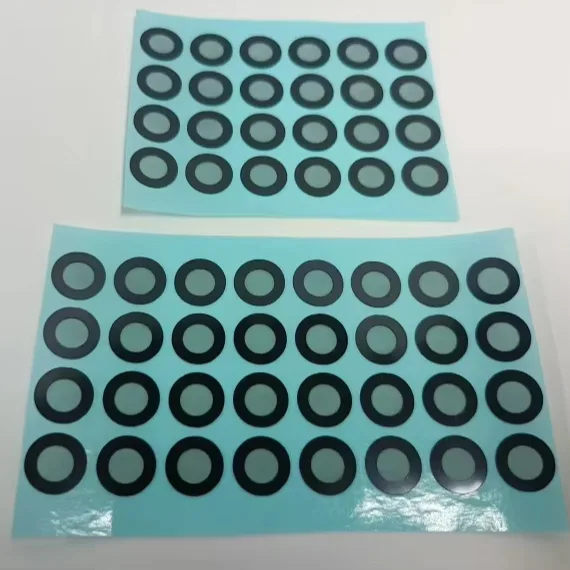

FSM-710 Black and Grey EPTFE Sound Transmitting Sheets
FSM-710 Black 14mm*8mm. Thickness: 0.01T; Size: 14mm*8mm; Film color: Black Grey.
Key attributes
- Model Number FSM-710 Black 14mm*8mm
- Material e-PTFE
- Thickness 0.01T
- Size 14mm*8mm
- Product name Waterproof breathable sound permeable membrane
- Minimum order 100 pieces
- Reference price US$0.47 / piece
Parameters
Specifications
Specification
| Material | e-PTFE |
|---|---|
| Thickness | 0.01T |
| Processing Service | Cutting, Moulding |
| Place of Origin | Guangdong, China |
| Model Number | FSM-710 Black 14mm*8mm |
| Brand Name | Migeer |
| Size | 14mm*8mm |
| Product name | Waterproof breathable sound permeable membrane |
| Film color | Black Grey |
| Class of protection | 5ATM |
| Waterproof rating | 5ATM50 meters depth, continuous for 10 minutes, multiple cycles |
| Water pressure resistance | 500kPa |
| Type of breathable membrane | Expanded polytetrafluoroethylene (ePTFE) |
| Type of adhesive backing | Acrylic adhesive |
| Operating temperature range | -40°C~120°C |
| After-sales service | Free spare parts |
| Engineering Solutions Capabilities | Recommend suitable materials according to needs |
| Design style | Modern |
| Plastic Modling Type | Mould |
| Model | FSM-710 Black |
| Waterproof class | Water depth of 50 meters lasting 10 minutes of multiple cycles |
| Breathable film type | waterproof |
| Backing type | Acrylic acid |
Packaging and delivery
| Minimum order quantity | 100 pieces |
|---|---|
| Selling Units | Multiple of 1 items |
| Package size per batch | 15X12X3 cm |
| Gross weight per batch | 0.7 kg |
| Lead time | 1 - 1,000 pieces: 7 days; 1,001 - 5,000 pieces: 8 days; 5,001 - 10,000 pieces: 15 days |
| Support material | Polyester |
Description
Product description
FSM-710 Black and Grey EPTFE Sound Transmitting Sheets. Material e-PTFE, Thickness 0.01T, Size 14mm*8mm, Film color Black Grey. Minimum order 100 pieces.
Product advantages

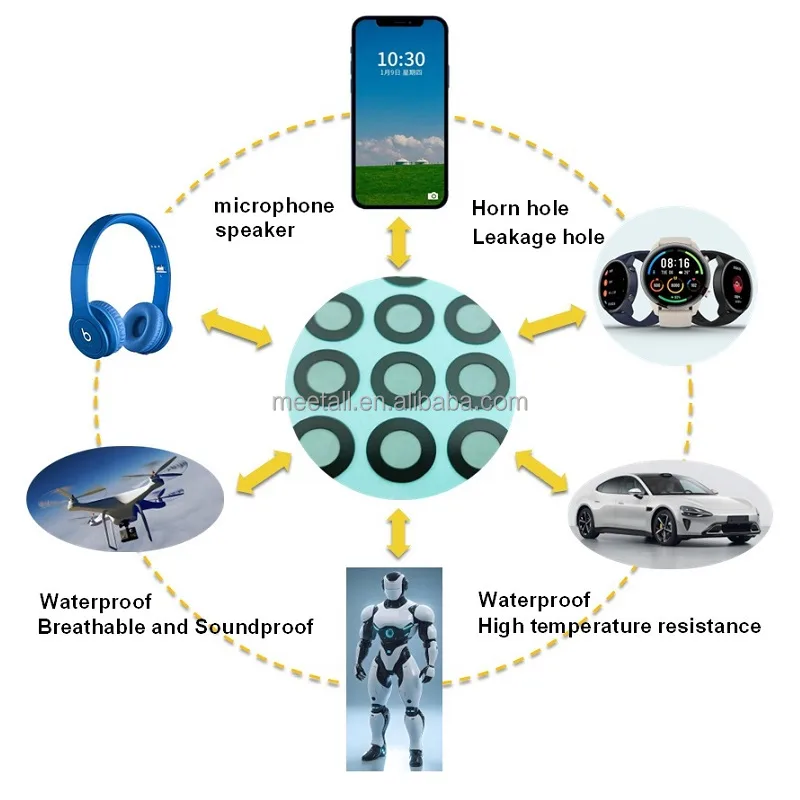

Product application scenarios
