Sound permeable and breathable membrane
FSM-7010B Hydrophobic EPTFE Pressure-Balancing Vent Sticker
FSM-7010B. Adhesive Type: Acrylic acid; Adhesive Side: Double Sided; Feature: Acrylic.
Key attributes
- Model Number FSM-7010B
- Material EPTFE
- Adhesive Type Acrylic acid
- Adhesive Side Double Sided
- Feature Acrylic
- Minimum order 5 pieces
- Reference price US$0.10 - 0.92 / piece
Parameters
Specifications
Specification
| Use | Acoustic For Speaker And Horn Anti Dust Vent |
|---|---|
| Material | EPTFE |
| Adhesive Type | Acrylic acid |
| Adhesive Side | Double Sided |
| Type | Adhesive Sticker |
| Feature | Acrylic |
| Design Printing | No Printing |
| Printing Handling | No Printing |
| paper core | 76 |
| Adhesive | Acrylic |
| GLUE | Acrylic Adhesive |
| Place of Origin | Guangdong, China |
| Thickness | 0.30 |
| Model Number | FSM-7010B |
| Brand Name | MEETALL |
| IP rate | IP-67~IP68 |
| Transmission Loss | 1.5db-3db |
| Service Temperature | Minus 40 degrees to 135 degrees |
| Air Flow | 1800~10000 |
| Color | white&black |
| Total Thickness | 0.01mm+Custom Thickness Available |
| Water Resistance Pressure | >60KPA |
| Processing Service | Cutting, Moulding |
| shape and size | customizable |
Packaging and delivery
| Minimum order quantity | 5 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 0.52X0.52X0.15 cm |
| Single gross weight | 0.015 kg |
| Lead time | 1 - 100 pieces: 8 days; 101 - 2,000 pieces: 10 days; 2,001 - 10,000 pieces: 15 days |
Description
Product description

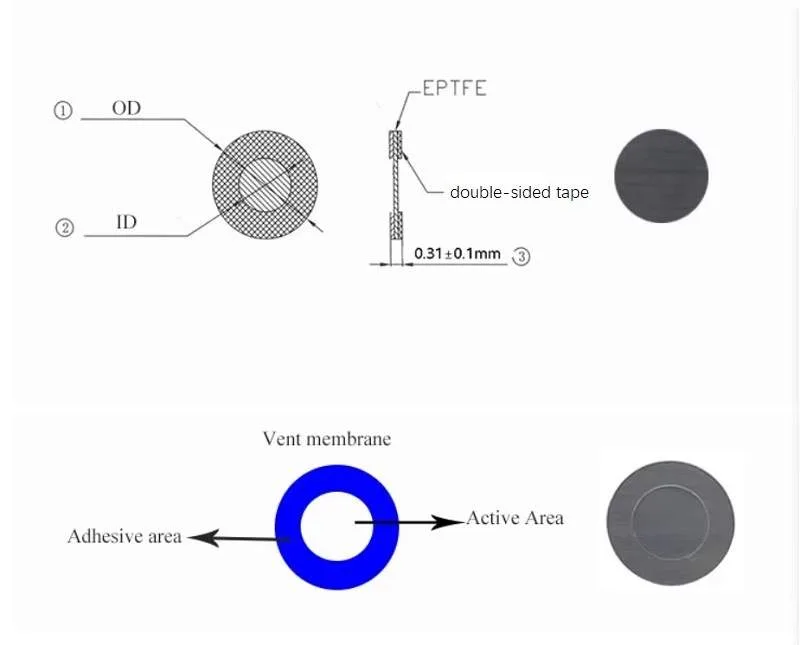

Integrated annular structure. Inner ID16mm is functional EPTFE sound & waterproof area; outer black support frame combines high-temp double-sided tape with green release liner. Reinforced rim prevents film deformation during mounting for better stability.

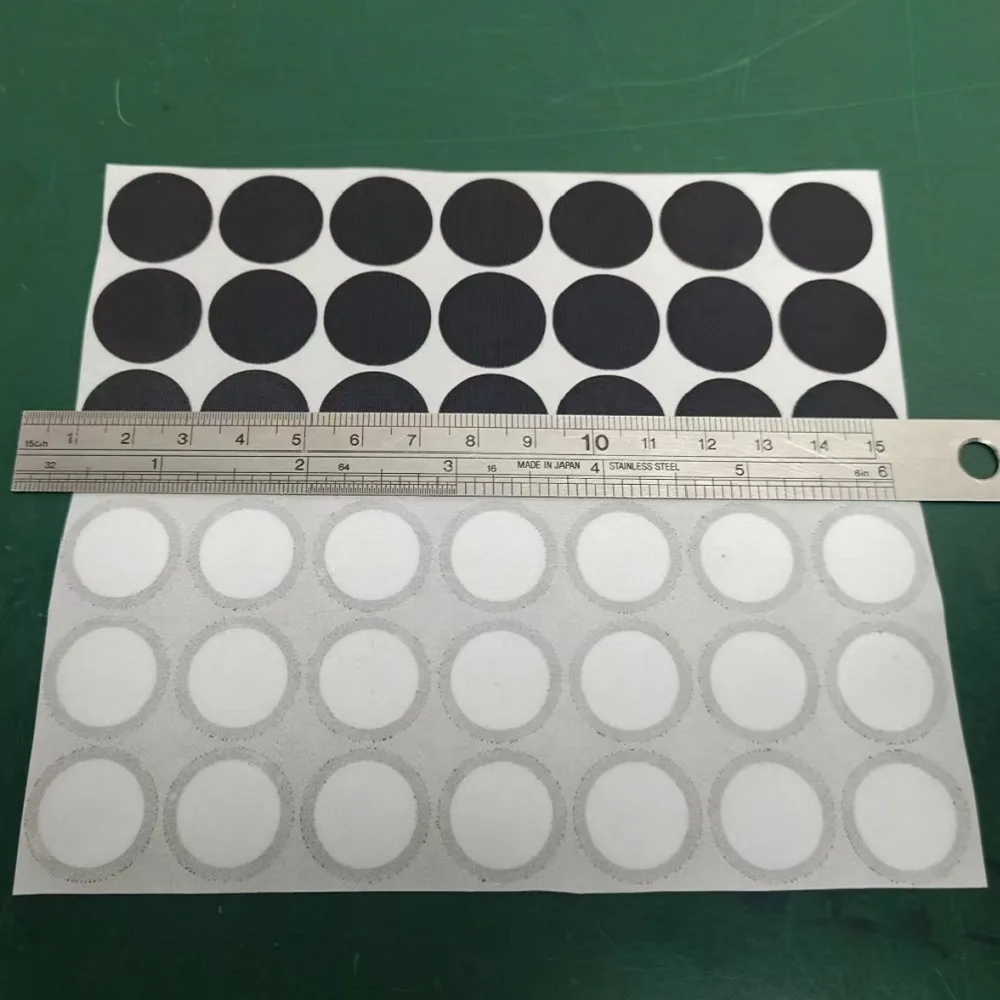

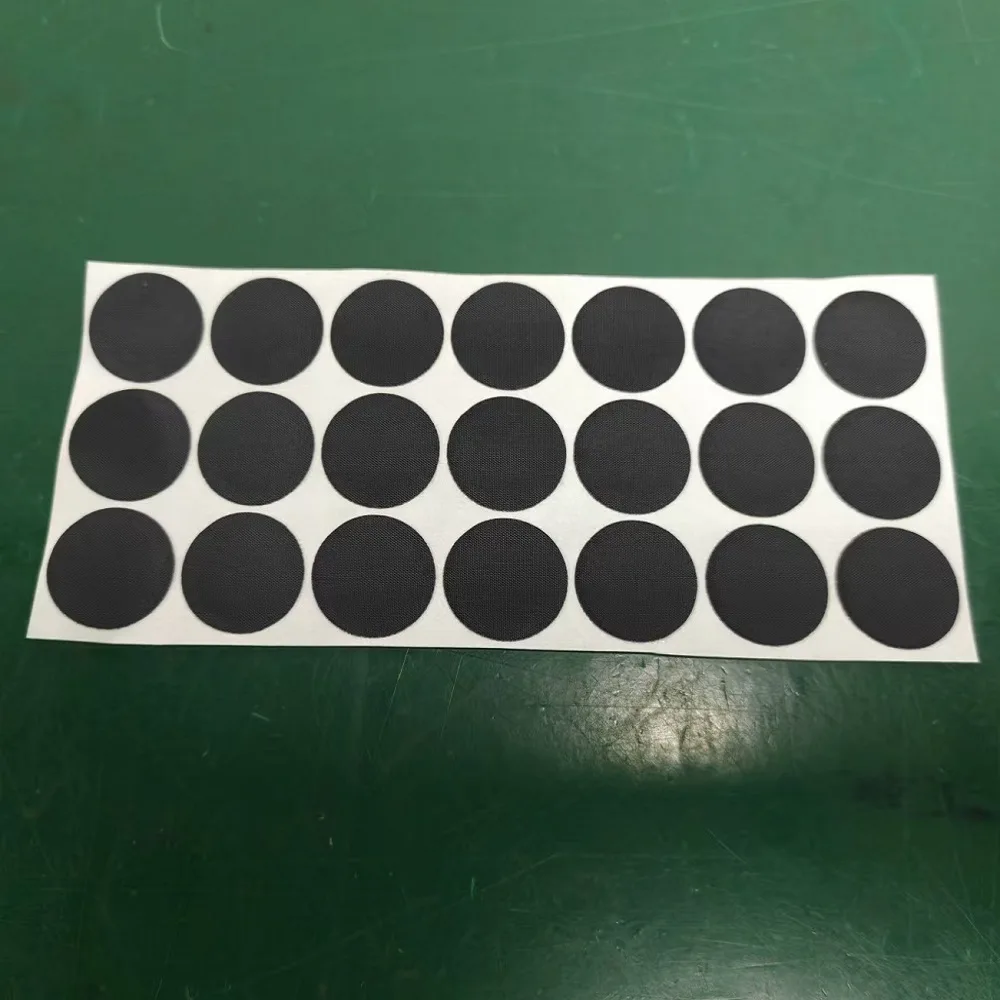

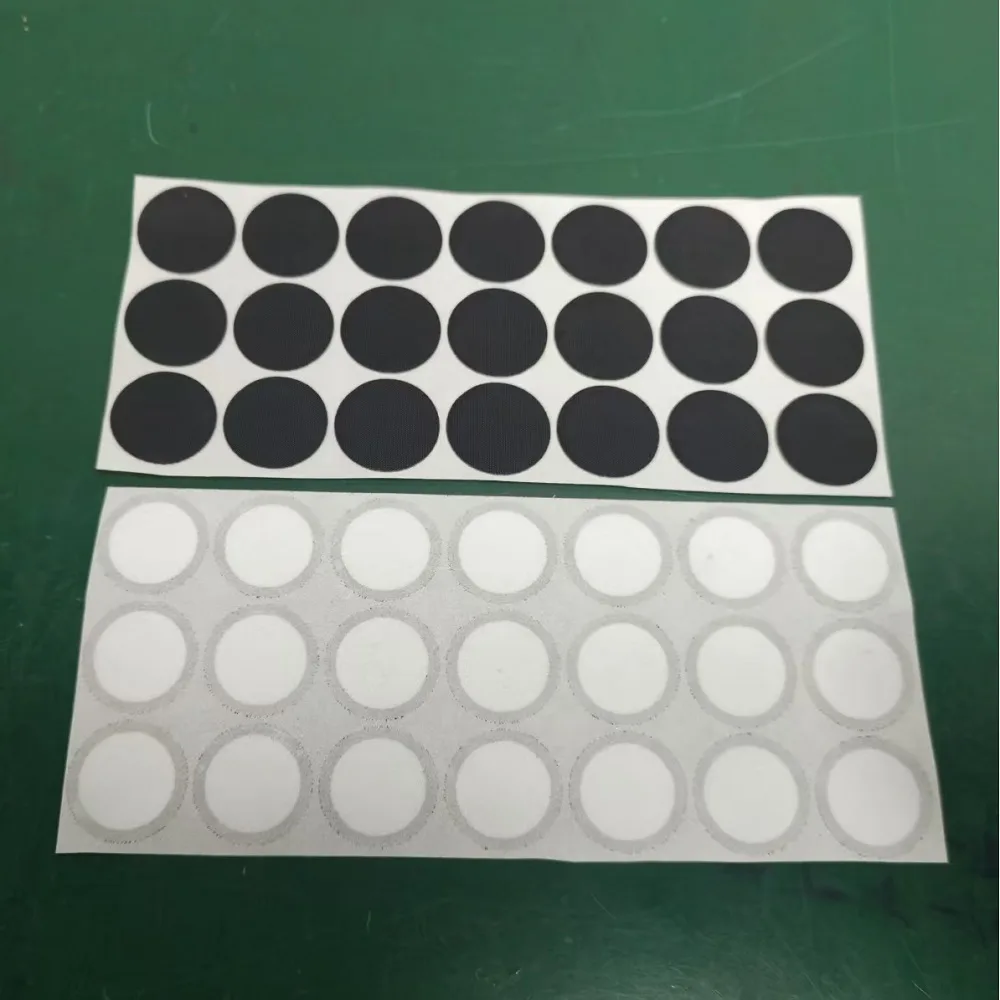

Standard OD20mm ID16mm with pre-applied adhesive & liner, compatible with auto placement and die-cutting to save assembly cost, customized sizes available.
Applied on TWS earbuds, smart watches, mini cameras, auto sensors, small home appliances & outdoor lamps, for speaker hole waterproofing as well as enclosure venting and internal pressure balance.
