Sound permeable and breathable membrane

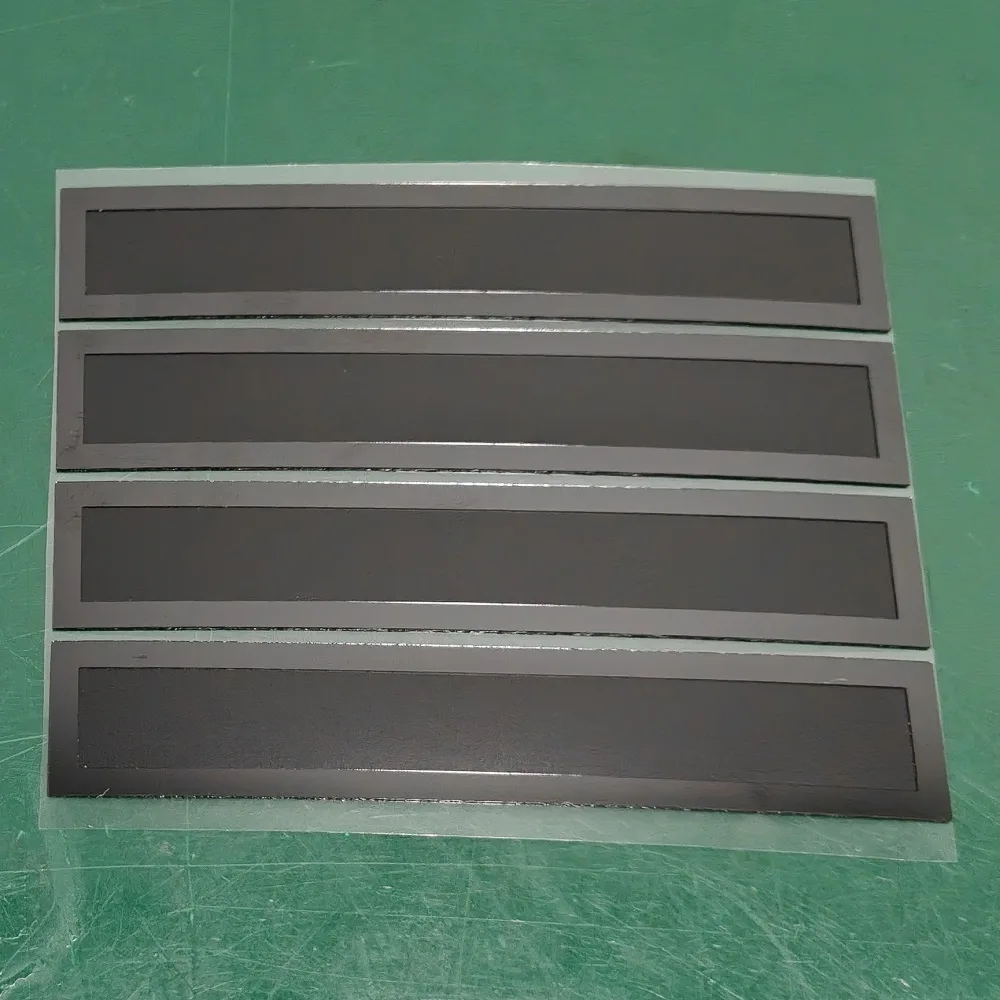

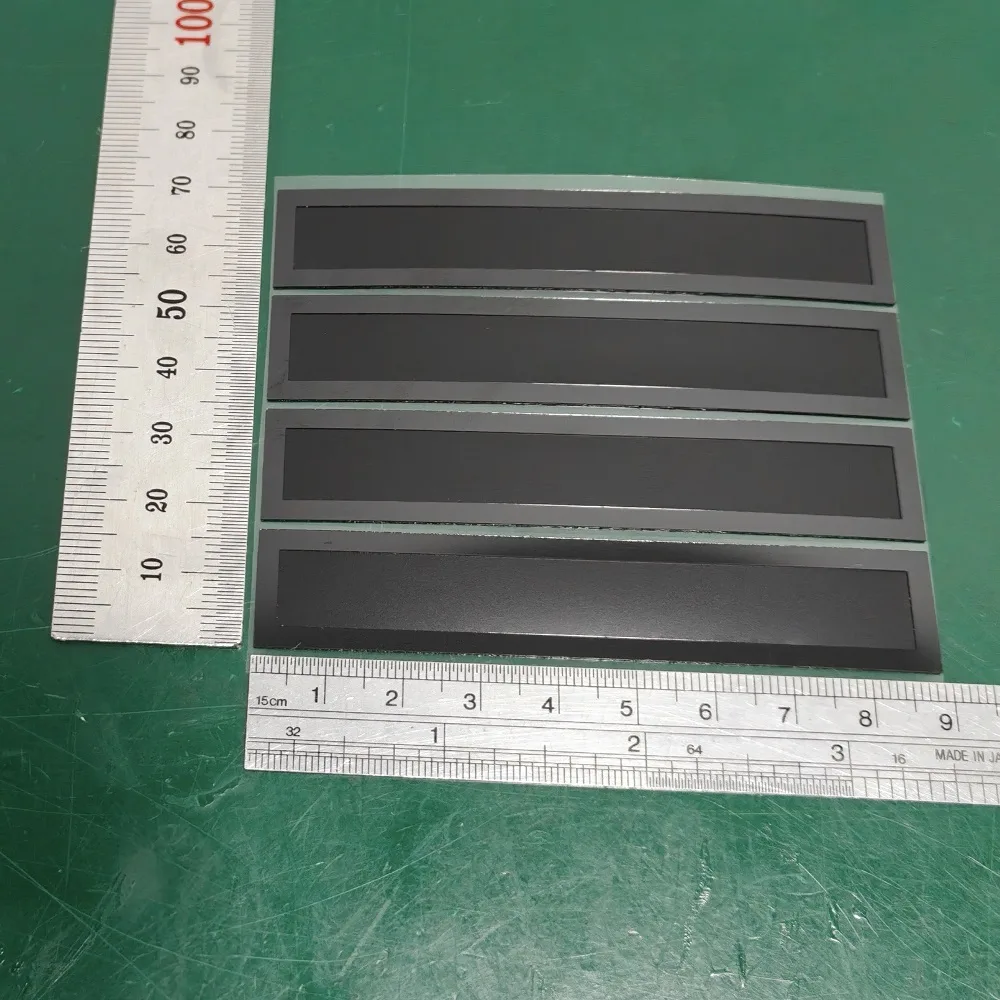

FSM-200B IP68 EPTFE Vent Membrane for Smartphones and Tablets
FSM-200B. Thickness: 0.3mm; Material Feature: EPTFE; Sample Size: 88.5mm*16mm.
Key attributes
- Model Number FSM-200B
- Material eptfe
- Thickness 0.3mm
- Material Feature EPTFE
- Sample Size 88.5mm*16mm
- Minimum order 20 pieces
- Reference price US$0.28 - 0.97 / piece
Parameters
Specifications
Specification
| Material | eptfe |
|---|---|
| Thickness | 0.3mm |
| Material Feature | EPTFE |
| Processing Service | Moulding Cutting |
| Sample Size | 88.5mm*16mm |
| Place of Origin | Guangdong, China |
| Model Number | FSM-200B |
| Brand Name | MEETALL |
| Size | Customization supported |
| IP rate | IP-67~IP68 |
| Transmission Loss | 3db |
| Service Temperature | Minus 40 degrees to 135 degrees |
| Air Flow | 1800 |
| Color | white |
| Total Thickness | 0.05mm+Custom Thickness Available |
| Water Resistance Pressure | >60KPA |
| shape and size | customizable |
Packaging and delivery
| Minimum order quantity | 20 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 8.92X1.34X0.12 cm |
| Single gross weight | 0.01 kg |
| Lead time | 1 - 500 pieces: 31 days; 501 - 5,000 pieces: 33 days; 5,001 - 25,000 pieces: 35 days |
Description
Product description
FSM-200B IP68 EPTFE Vent Membrane for Smartphones and Tablets. Material eptfe, Thickness 0.3mm, Material Feature EPTFE, Sample Size 88.5mm*16mm. Minimum order 20 pieces.
