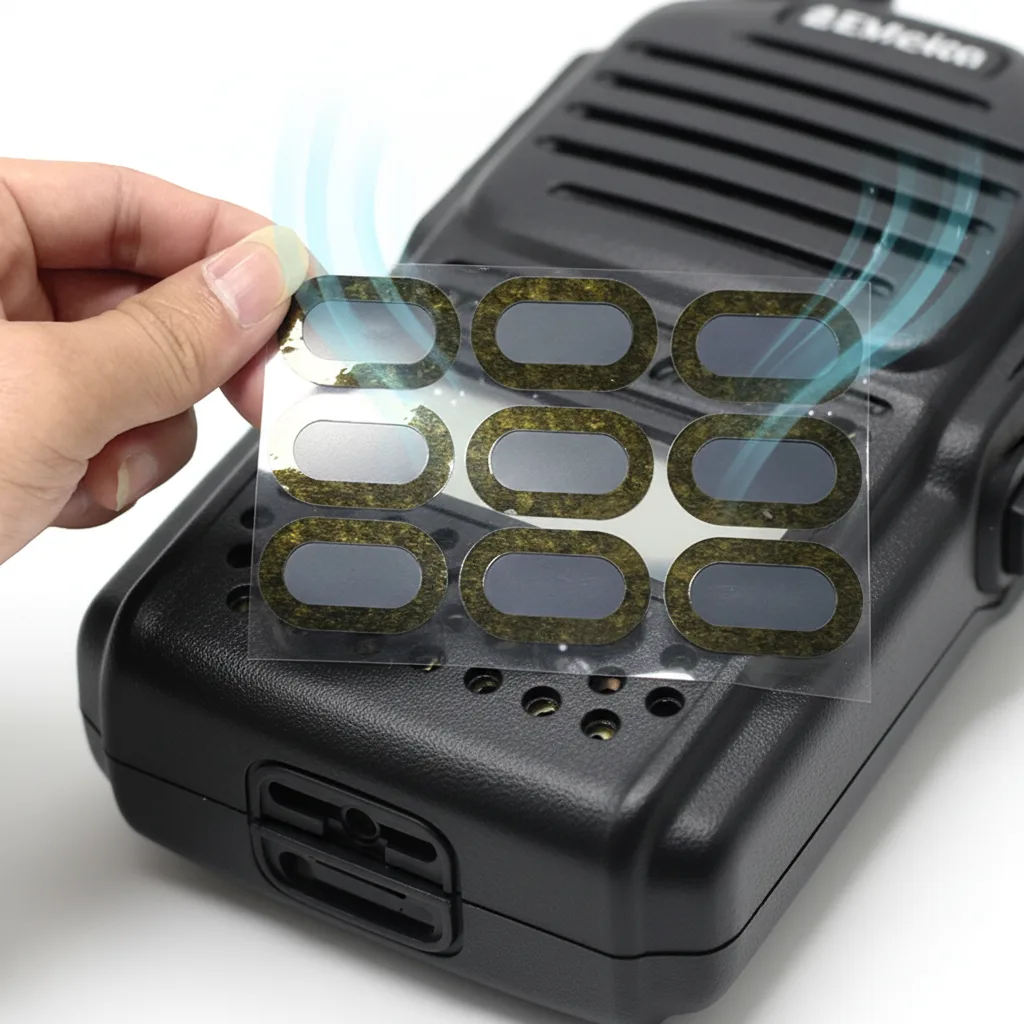

FSM-200 EPTFE Medical Device Waterproof Breathable Membrane Factory Customization

Sound permeable and breathable membrane

FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices

FSM-200. Description: Waterproof Breathable Membrane; Adhesive: acrylic; Thickness: 0.02mm.

Key attributes

  • Model Number FSM-200
  • Description Waterproof Breathable Membrane
  • Adhesive acrylic
  • Thickness 0.02mm
  • Usage Waterproof Breathable
  • Minimum order 100 pieces
  • Reference price US$0.33 / piece
Request a quote WhatsApp

Parameters

Specifications

Specification

Place of Origin Guangdong, China
Brand Name MEETALL
Model Number FSM-200
Description Waterproof Breathable Membrane
Adhesive acrylic
Thickness 0.02mm
Usage Waterproof Breathable
Operating Temperature -40 °C~135 °C
Product name Waterproof Acoustic Membrane
Total Thickness 0.02mm+Custom Thickness Available
Color BLACK
Air Flow 1000
Water Resistance Pressure >60KPA
Protection Level IP67 (Dust-tight & Water Immersion Resistant)
Moisture Permeability >5000g/m2.24H
Transmission Loss 3db
Service Temperature -40 °C-135 °C
Material ePTFE Membrane + Adhesive + Release Liner

Packaging and delivery

Minimum order quantity 100 pieces
Selling Units Multiple of 1 items
Package size per batch 1X1X1 cm
Gross weight per batch 0.1 kg
Lead time 1 - 500 pieces: 5 days; 501 - 2,000 pieces: 7 days; 2,001 - 5,000 pieces: 10 days

Description

Product description

FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices. Description Waterproof Breathable Membrane, Adhesive acrylic, Thickness 0.02mm, Usage Waterproof Breathable. Minimum order 100 pieces.

FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 1
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 2
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 3
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 4
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 5
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 6
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 7
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 8
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 9
FSM-200 EPTFE Waterproof Breathable Membrane for Medical Devices detail 10
