Sound permeable and breathable membrane

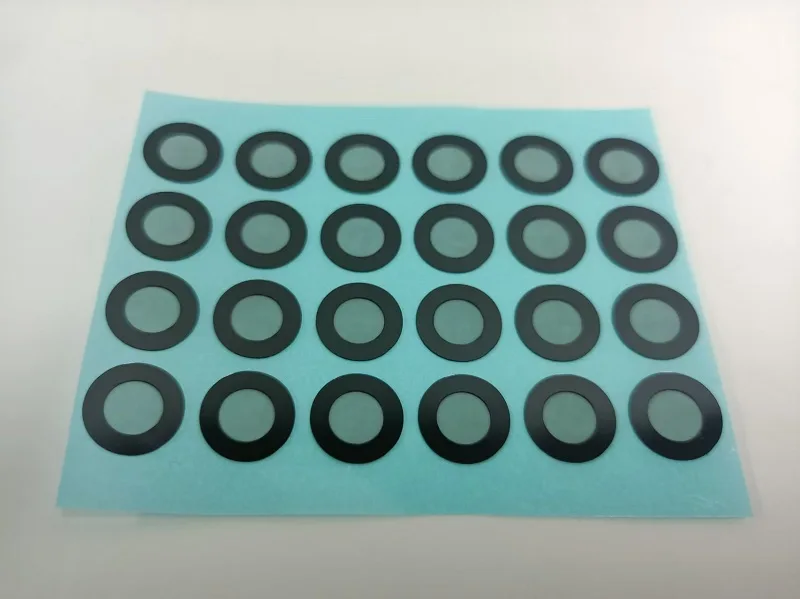

FSM-200 EPTFE Vent for EV Battery Enclosures

Name: FSM-200 EPTFE Vent for EV Battery Enclosures
Brand: Meetall
SKU: FSM-200

FSM-200. Thickness: 0.3mm; Material Feature: EPTFE; Sample Size: 13mm*10mm.

Key attributes

Parameters

Specifications

Material	eptfe
Thickness	0.3mm
Material Feature	EPTFE
Processing Service	Moulding Cutting
Sample Size	13mm*10mm
Place of Origin	Guangdong, China
Model Number	FSM-200
Brand Name	MEETALL
Size	Customization supported
IP rate	IP-67~IP68
Transmission Loss	1.5db-3db
Service Temperature	Minus 40 degrees to 135 degrees
Air Flow	300~10000
Color	white&black
Total Thickness	0.01mm+Custom Thickness Available
Water Resistance Pressure	>100KPA
shape and size	customizable

Minimum order quantity	50 pieces
Selling Units	Single item
Single package size	3X2X0.3 cm
Single gross weight	0.01 kg
Lead time	1 - 500 pieces: 5 days; 501 - 5,000 pieces: 10 days; 5,001 - 25,000 pieces: 31 days

Description

Waterproof rating IP67-IP68

Sound loss of 1.5dB-3.5dB

Ventilation speed 300-10000mm/S

Pressure resistance of 5-100 meters

Customizable size and thickness, customizable with different adhesives
