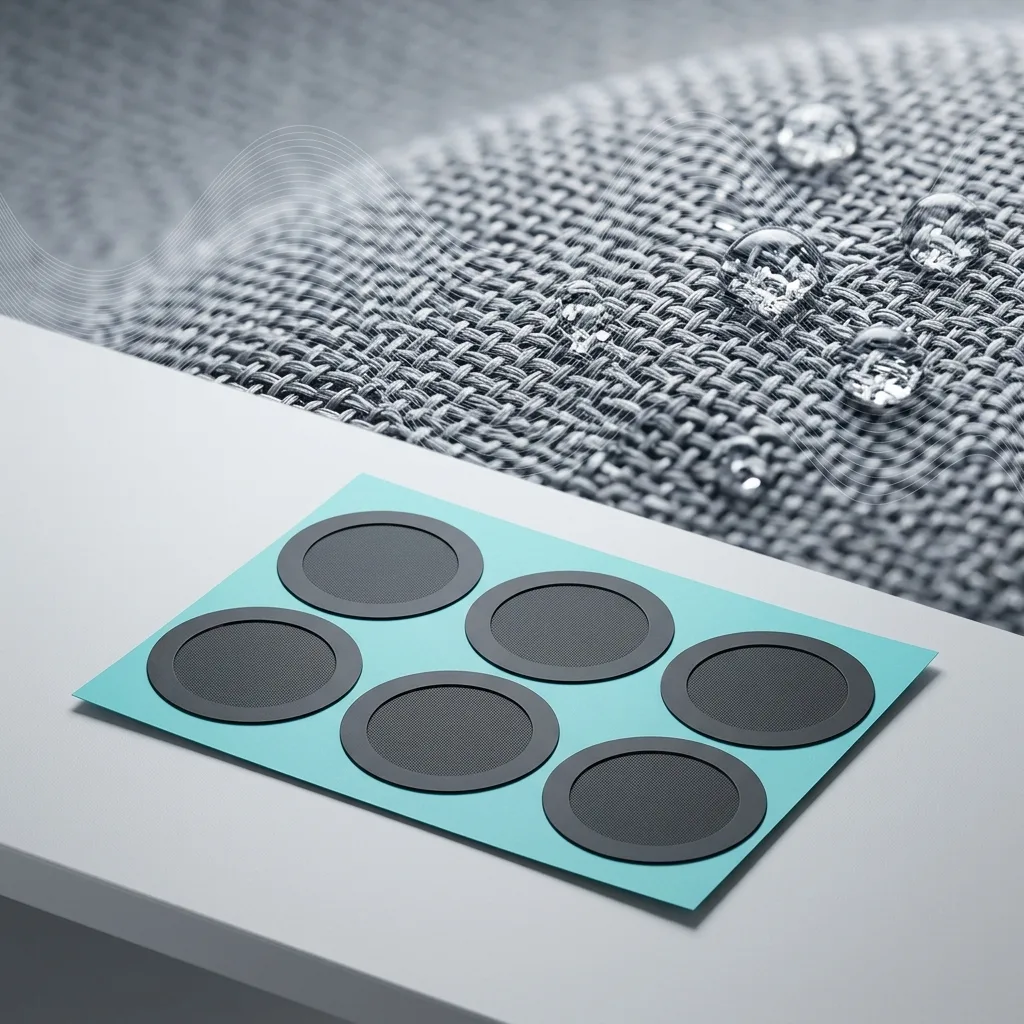

Sound permeable and breathable membrane
B260 RoHS REACH Acoustic Mesh, Splash Proof Net
B260. Adhesive: acrylic acid; Thickness: 0.06mm~0.085mm; Usage: Dustproof and waterproof.
Key attributes
- Model Number B260
- Adhesive acrylic acid
- Thickness 0.06mm~0.085mm
- Usage Dustproof and waterproof
- Function Dustproof and waterproof
- Minimum order 20 pieces
- Reference price US$0.11 - 0.87 / piece
Parameters
Specifications
Specification
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | MEETALL |
| Model Number | B260 |
| Description | High quality dust-proof mesh achieves IP67 waterproof and dustproof performance. |
| Adhesive | acrylic acid |
| Thickness | 0.06mm~0.085mm |
| Usage | Dustproof and waterproof |
| Function | Dustproof and waterproof |
| Operating Temperature | -40 degrees ~ 120 degrees |
| type | dust-proof net |
| color | Black and white |
| Aperture (micrometers) | 7~260 |
| Acoustic Resistance (MKS Rayls) | 20~4000 |
| size | customization |
| Certificate | ROHS |
| Product keywords | Dustproof and waterproof |
Packaging and delivery
| Minimum order quantity | 20 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 3.44X2.76X0.17 cm |
| Single gross weight | 0.23 kg |
| Lead time | 1 - 100 pieces: 31 days; 101 - 5,000 pieces: 33 days; 5,001 - 10,000 pieces: 35 days |
Description
Product description
With professional hydrophobic coating, it achieves IP67 rating. Effectively block dust, rain and sweat, resist water splash and temporary immersion to protect sound holes.
Uniform pore size and stable acoustic resistance with low sound loss. Deliver clear original sound. Multiple specs balance air permeability and sound transmission for diverse audio products.
Standard and high precision series available in black and white. Custom size and die-cut shape are supported. Bulk supply is available for prototyping and mass production.
