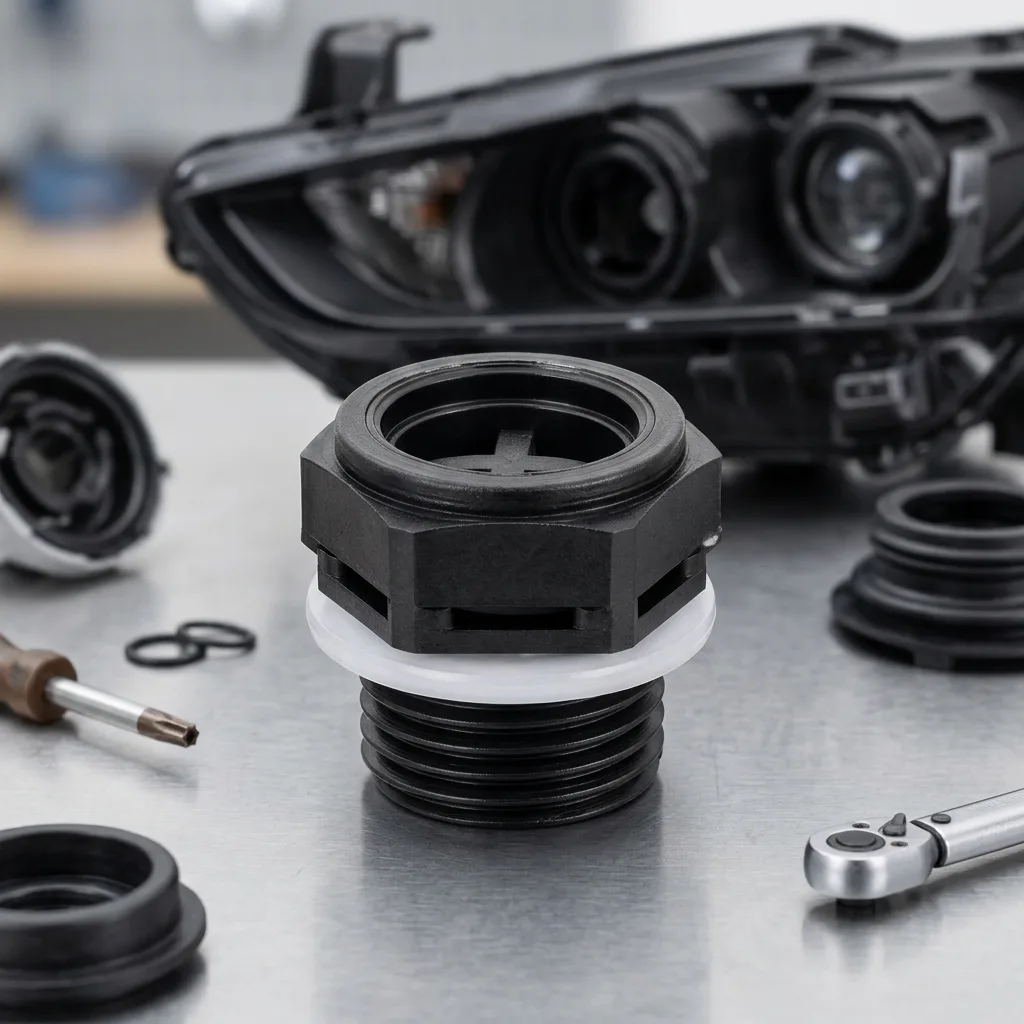

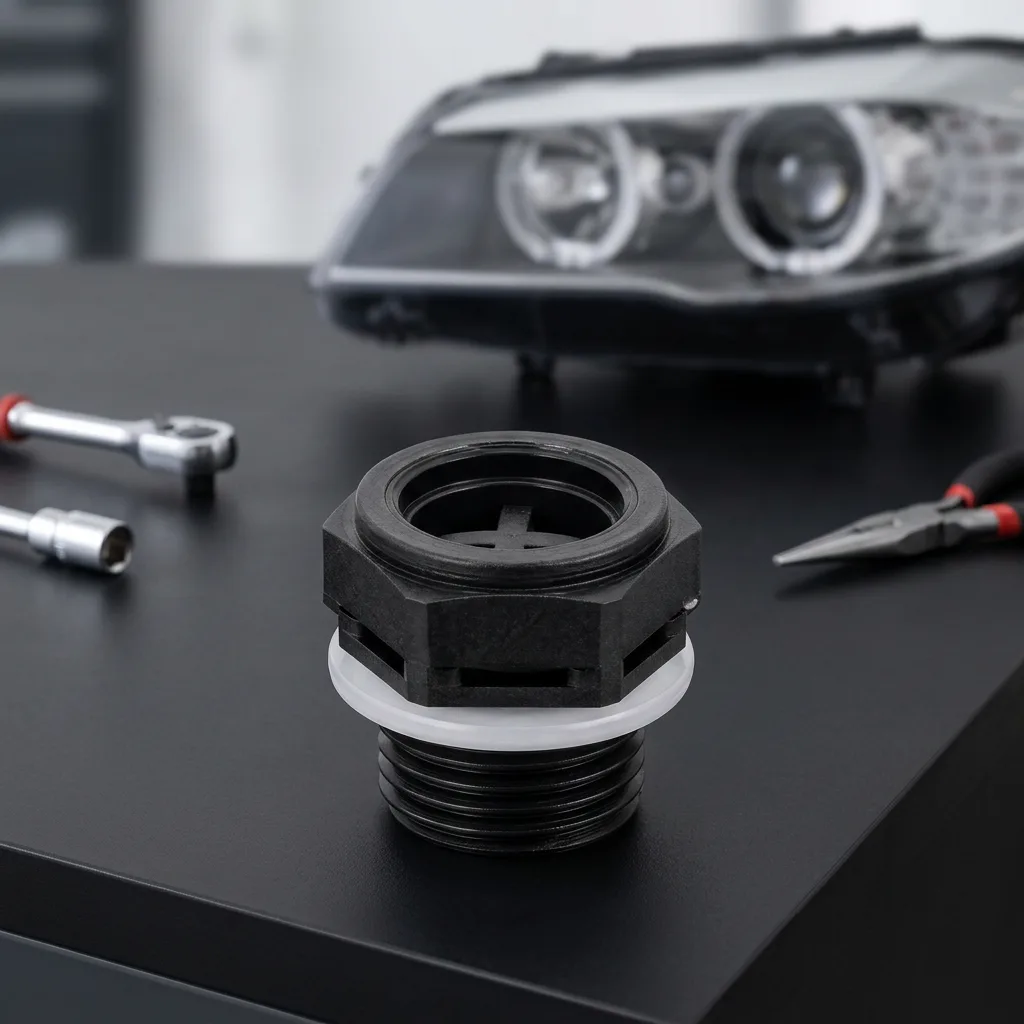

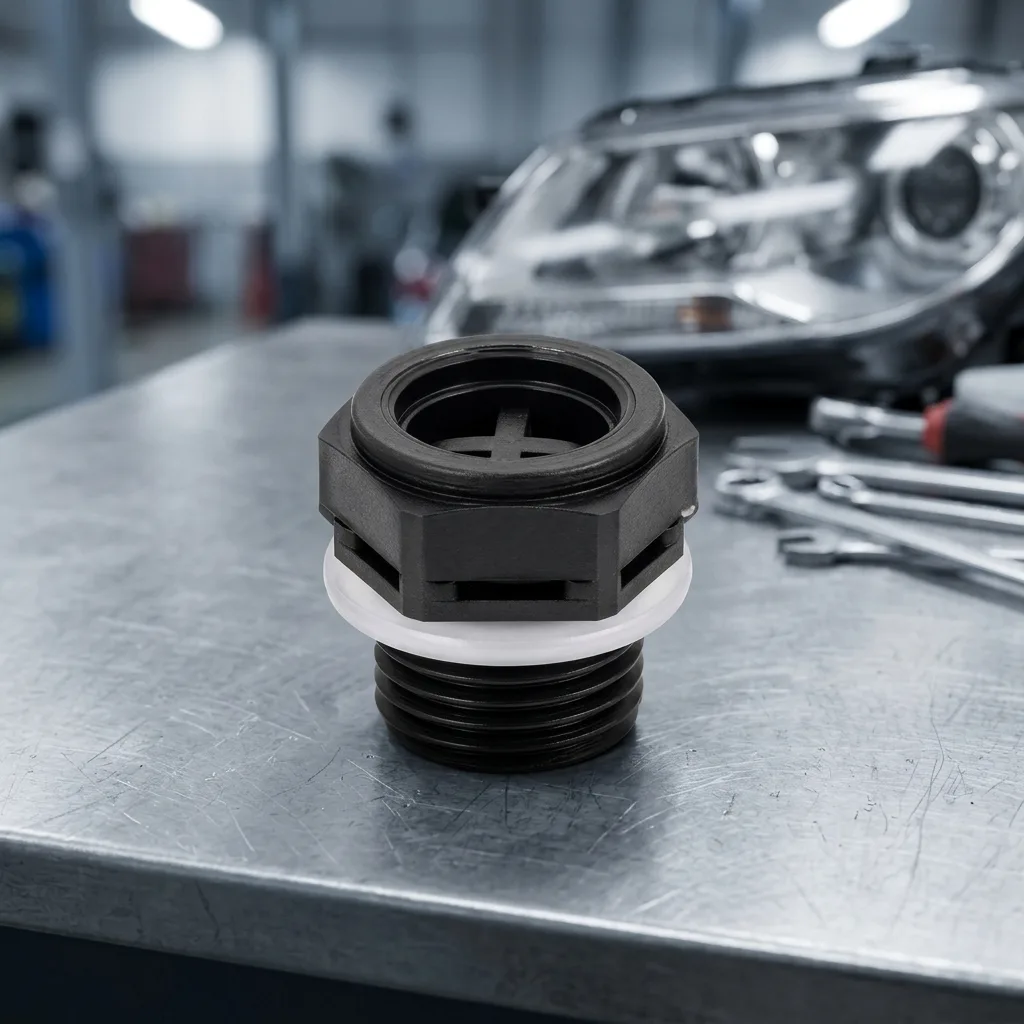

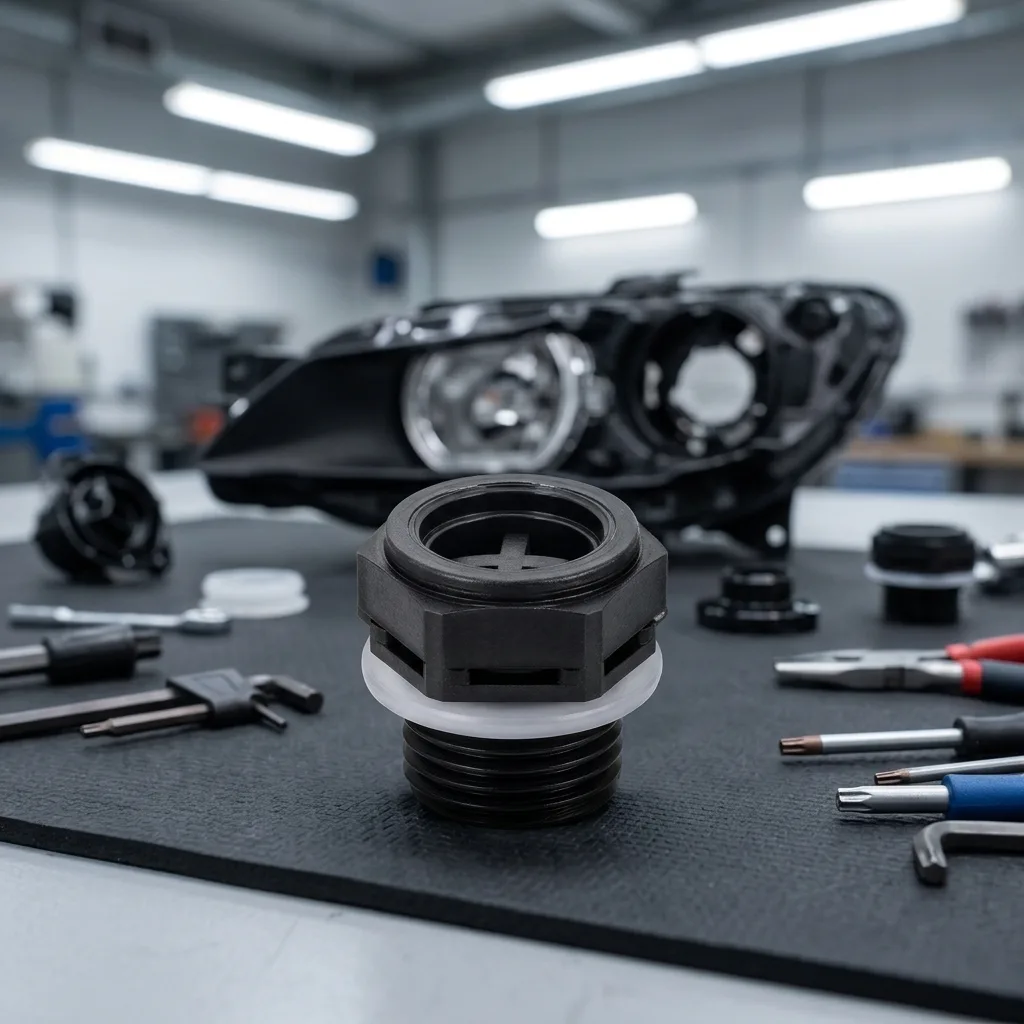

MGR-WBV16 M16 Vent Plug, PA66 Shell, EPTFE Film, Headlight Pressure Relief
MGR-WBV16. Dimension (L*W*H): 16mm; Total Thickness: 0.05mm; Air Flow: 1800S.
Key attributes
- Model Number MGR-WBV16
- Color Black
- Dimension (L*W*H) 16mm
- Product name Nylon PA66 breathable valve
- Total Thickness 0.05mm
- Minimum order 20 pieces
- Reference price US$0.14 - 0.79 / piece
Parameters
Specifications
Specification
| Rubber Product Type | Rubber Stopper |
|---|---|
| Color | Black |
| Model Number | MGR-WBV16 |
| Processing Service | Moulding, Cutting |
| Place of Origin | Guangdong, China |
| Dimension (L*W*H) | 16mm |
| Brand Name | MEETALL |
| Product name | Nylon PA66 breathable valve |
| Total Thickness | 0.05mm |
| Air Flow | 1800S |
| Waterproof Rating | IP67 |
| Moisture Permeability | >5000g/m2.24H |
| Transmission Loss | 3db |
| Service Temperature | -40 °C-135 °C |
| Application Scenario | Mobile Phone Speaker and Microphone;MIC / Microphone;Smartwatch |
Packaging and delivery
| Minimum order quantity | 20 pieces |
|---|---|
| Selling Units | Single item |
| Single package size | 1.9X1.6X1.4 cm |
| Single gross weight | 0.1 kg |
| Lead time | 1 - 500 pieces: 31 days; 501 - 2,000 pieces: 33 days; 2,001 - 5,000 pieces: 35 days |
Description
Product description
Glass fiber reinforced PA66 housing, Modified PA66 with glass fiber delivers high mechanical strength & creep resistance. Wide temperature range: -40℃ ~ 125℃. Excellent UV aging, salt spray and chemical resistance against coolant, detergent and de-icing salt, suitable for harsh automotive lighting environment.
High resilience silicone sealing gasket, High-temperature resistant silicone maintains stable sealing performance after repeated thermal cycling. Prevents water & dust ingress, avoids gasket hardening and cracking for long-term service.

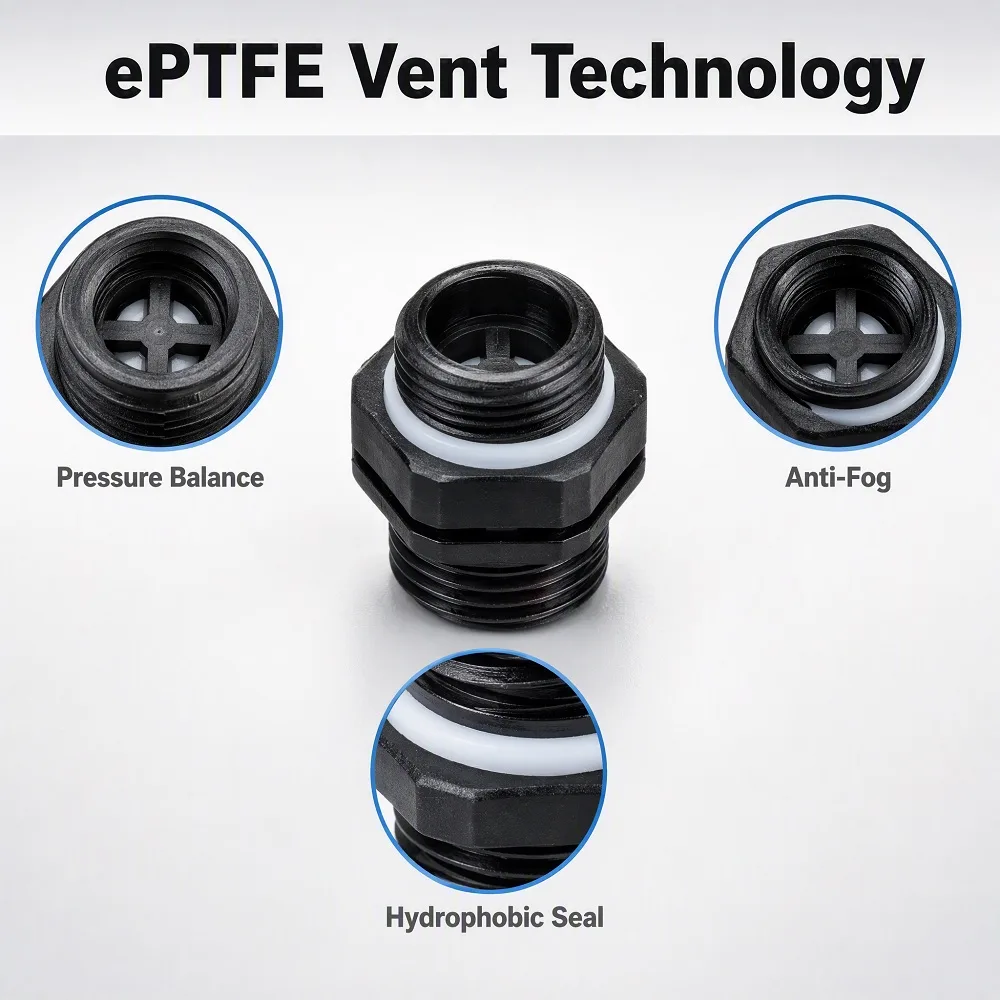

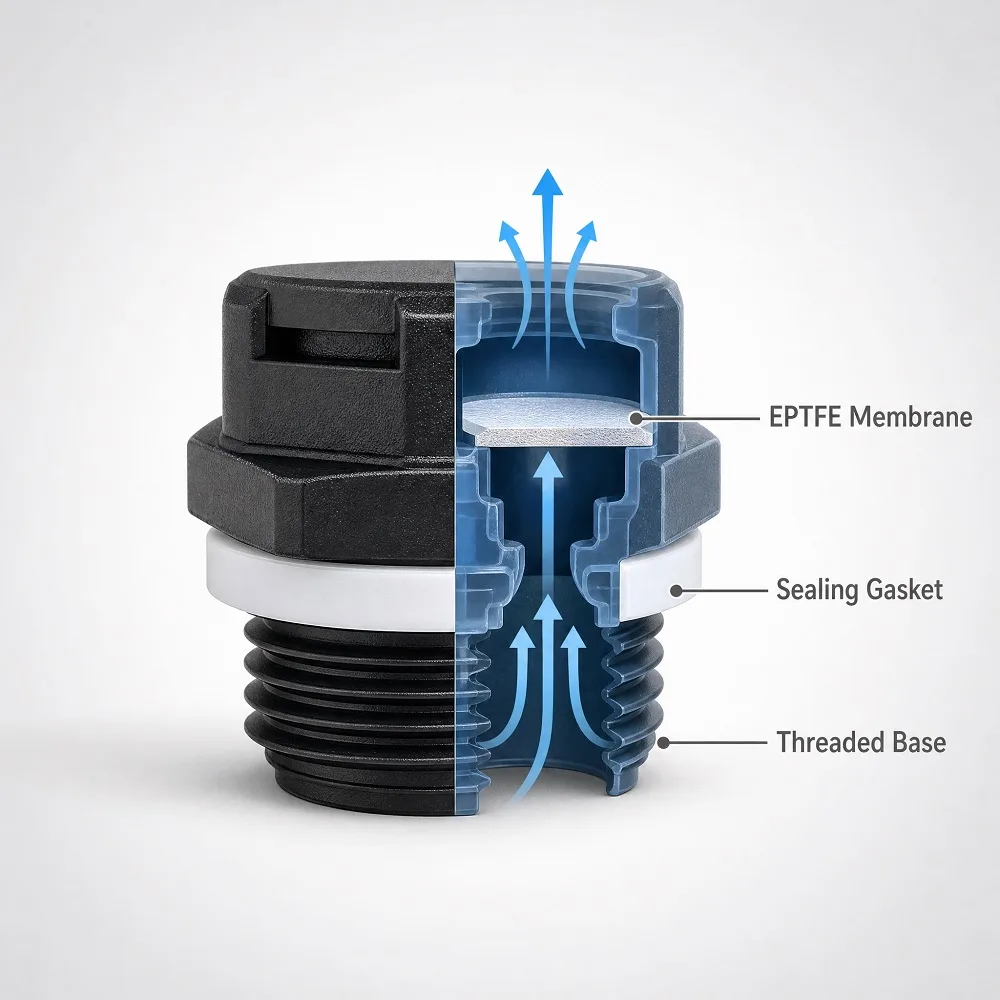

ePTFE waterproof & breathable membrane core,Expanded PTFE microporous film equalizes internal & external pressure of lamp housing, effectively eliminates fogging and condensation inside headlight. Air permeable while blocking liquid water, withstand high-pressure water jet during car washing.
Standard M12 / M16 screw-in installation,Easy to mount & replace. Widely compatible with car headlamps, fog lamps, EV charging housings and electronic enclosures.
Long-lasting reliable protection,Stable breathable performance with low aging rate, reduces after-sales failure caused by lamp fogging & water ingress, improves overall component durability.
