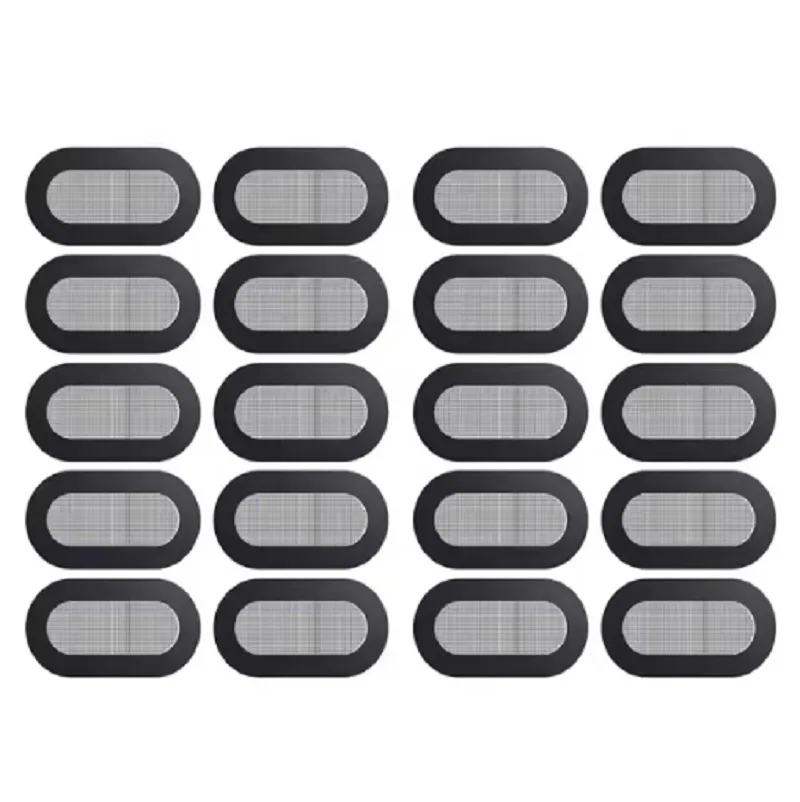

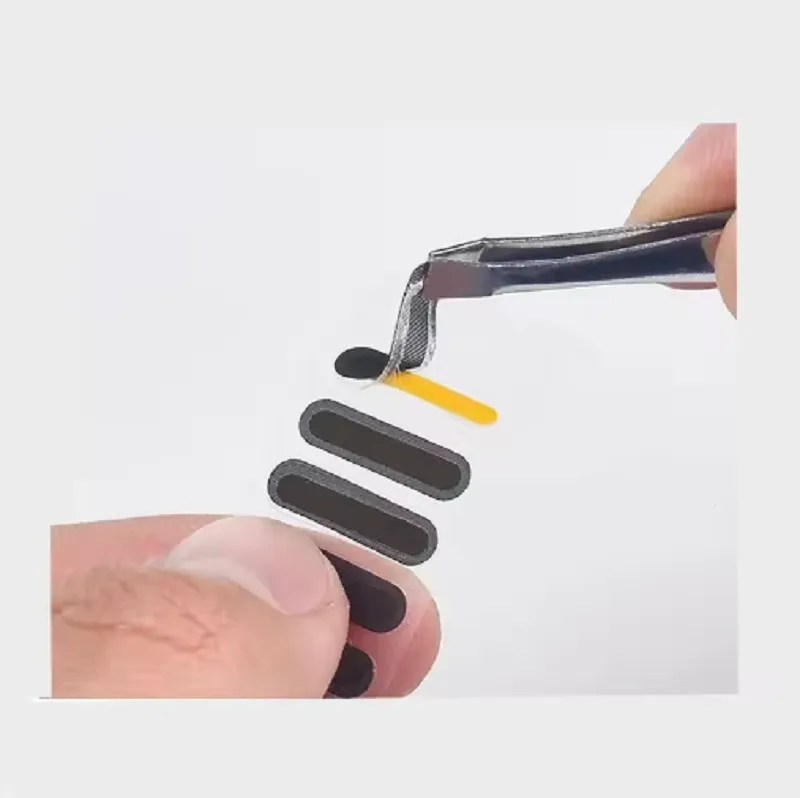

B042HY IP55 to IP68 PTFE Mesh for Phone Earpieces
B042HY. Description: Anti-dust Speaker Mesh; Adhesive: acrylic acid; Thickness: 0.35mm.
Key attributes
- Model Number B042HY
- Adhesive acrylic acid
- Thickness 0.35mm
- Operating Temperature -40-125 °C
- Product name Waterproof breathable membrane
- Minimum order 100 pieces
- Reference price US$0.27 - 0.30 / piece
Parameters
Specifications
Specification
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | MEETALL |
| Model Number | B042HY |
| Description | Anti-dust Speaker Mesh |
| Adhesive | acrylic acid |
| Thickness | 0.35mm |
| Function | Dustproof and Waterproof |
| Operating Temperature | -40-125 °C |
| Product name | Waterproof breathable membrane |
| Material | Polytetrafluoroethylene |
| Color | Black white |
| Model | die-cutting |
| dimension | custom |
| Temperature resistance | -40-125 °C |
| Application scenario | Microphone chamber inside and outside the mobile phone smart wear |
| IP rate | IP-55~IP68 |
| After-sales service | Free spare parts |
| Engineering Solutions Capabilities | Recommend suitable materials according to needs |
| Design style | Modern |
| Processing Service | Moulding, Cutting |
| Plastic Modling Type | Mould |
| B042HYModel | B042HY |
| Film color | white black |
| Class of protection | 5ATM |
| Waterproof class | Water depth of 50 meters lasting 10 minutes of multiple cycles |
| Water pressure resistance | 500KPA |
| Breathable film type | waterproof |
| Backing type | Acrylic acid |
| Operating temperature range | -40°C~100°C |
Packaging and delivery
| Minimum order quantity | 100 pieces |
|---|---|
| Selling Units | Multiple of 1 items |
| Package size per batch | 3X2X2 cm |
| Gross weight per batch | 0.1 kg |
| Lead time | 1 - 100 pieces: 5 days; 101 - 500 pieces: 7 days; 501 - 10,000 pieces: 7 days |
| Packing | custom |
Description
Product description
B042HY IP55 to IP68 PTFE Mesh for Phone Earpieces. Description Anti-dust Speaker Mesh, Adhesive acrylic acid, Thickness 0.35mm, Usage Anti-dust Speaker Mesh. Minimum order 100 pieces.
