Electromagnetic wave shielding material

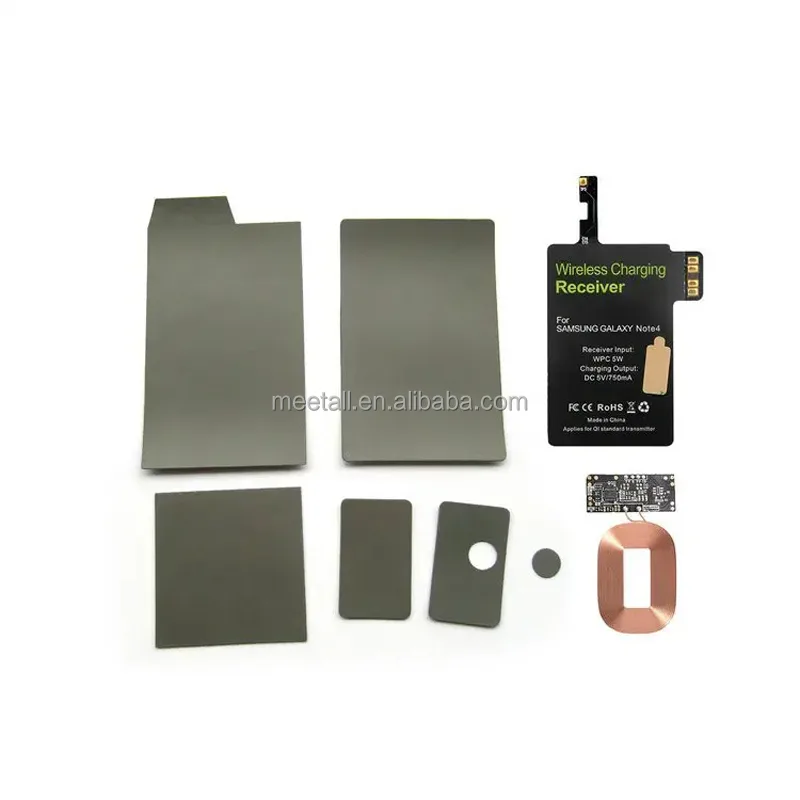

AB5100HF EMI Shielding Absorbing Sheet
AB5100HF. Initial permeability: 180; Recommended frequency band: 10MHz-6GHz; Surface resistivity: >1x10.
Key attributes
- Model Number AB5100HF
- Initial permeability 180
- Recommended frequency band 10MHz-6GHz
- Surface resistivity >1x10
- Product thickness 0.1~1.0T
- Minimum order 100 pieces
- Reference price US$0.66 / piece
Parameters
Specifications
Specification
| Model Number | AB5100HF |
|---|---|
| Processing Service | MouldingCutting |
| Place of Origin | Guangdong, China |
| Brand Name | Migeer |
| Initial permeability | 180 |
| Recommended frequency band | 10MHz-6GHz |
| Surface resistivity | >1x10 |
| Product thickness | 0.1~1.0T |
| density | >2.8g/cm3 |
| Adhesiveness (customer selection) | T0.01mm, >600T >=0.03mm,>1000 |
| Product specification | Sheet or coil (can be specified by customer)mm |
| Operating temperature range | 40~120 |
| Storage condition | 0~30 |
| Shelf life | 12 months |
| Material | Fe Si Al Magnetic Powder + Rubber + Polymer |
| Magnetic permeability (u/at 100MHz) | > 25 |
| Working temperature range ( °C) | -20 ~ 120 °C |
| Thermal conductivity (W/mK) | 0.6 ~ 0.8 |
| Surface resistance (Ω/cm ²) | > 1 × 10⁶ |
| Color | Gray / Black / Customized |
| Function | Absorbing electromagnetic wave |
| Surface Treatment | Insulating layer / With double-sided tape |
Packaging and delivery
| Minimum order quantity | 100 pieces |
|---|---|
| Selling Units | Multiple of 1 items |
| Package size per batch | 15X10X5 cm |
| Gross weight per batch | 1.0 kg |
| Lead time | 1 - 200 pieces: 7 days; 201 - 500 pieces: 10 days; 501 - 1,000 pieces: 20 days |
| Delivery time | 7-10 days |
| Sample | Free |
Description
Product description
AB5100HF EMI Shielding Absorbing Sheet. Initial permeability 180, Recommended frequency band 10MHz-6GHz, Surface resistivity >1×10, Product thickness 0.1~1.0T. Minimum order 100 pieces.
