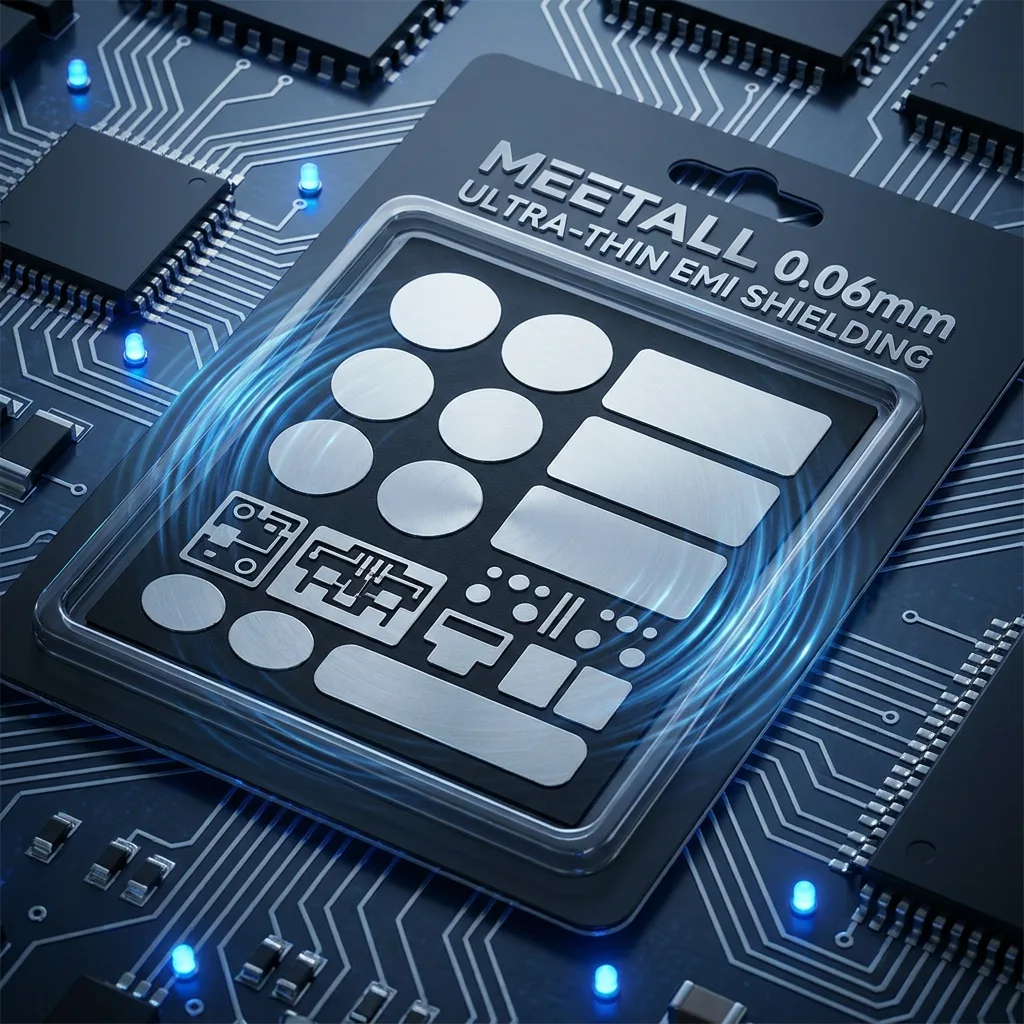

0.06mm Ultra Thin EMI Shielding Patch Sheet Metal Wave Absorbing Material Die Cut for Electronic Devices

Electromagnetic wave shielding material

0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut

Description: Electromagnetic wave shielding; Manufacturer Part Number: HP-120; Mounting Type: adhesive backing.

Key attributes

  • Model Number HP-120
  • Manufacturer Part Number HP-120
  • Mounting Type adhesive backing
  • Series HP
  • Initial permeability 250
  • Minimum order 100 pieces
  • Reference price US$0.69 - 1.20 / piece
Request a quote WhatsApp

Parameters

Specifications

Specification

Description Electromagnetic wave shielding
Brand Name MEETALL
Manufacturer Part Number HP-120
Type HP-120 85mm*53mm*0.35mm
Place of Origin Guangdong, China
Mounting Type adhesive backing
Series HP
Initial permeability 250
Recommended frequency band 10MHz-10GHz
Material Fe Si Al Magnetic Powder + Rubber + Polymer
Working temperature range From minus 40 degrees Celsius to over 120 degrees Celsius
Surface resistance > 1 × 10⁶
Inductance coefficient Inductance coefficient 500 nH
Purpose EMI shielding,absorb electromagnetic waves
Color Gray / Black / Customized
Processing Service Moulding, Cutting
Model Number HP-120
Magnetic permeability (u/at 100MHz) > 25
Thermal conductivity (W/mK) 0.6 ~ 0.8
Function Absorbing electromagnetic wave
Surface Treatment Insulating layer / With double-sided tape

Packaging and delivery

Minimum order quantity 100 pieces
Selling Units Single item
Single package size 9X6X0.2 cm
Single gross weight 0.05 kg
Lead time 1 - 100 pieces: 7 days; 101 - 1,000 pieces: 12 days; 1,001 - 10,000 pieces: 15 days
Delivery time 7-10 days
Sample Free

Description

Product description

0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut. Description Electromagnetic wave shielding, Manufacturer Part Number HP-120, Mounting Type adhesive backing, Application Electromagnetic wave shielding. Minimum order 100 pieces.

0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 1
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 2
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 3
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 4
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 5
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 6
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 7
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 8
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 9
0.06mm Ultra-Thin EMI Shielding Patch, Die-Cut detail 10
